a)At a distance of 0.216cm from the center of a charged conducting sphere with radius 0.100cm,...

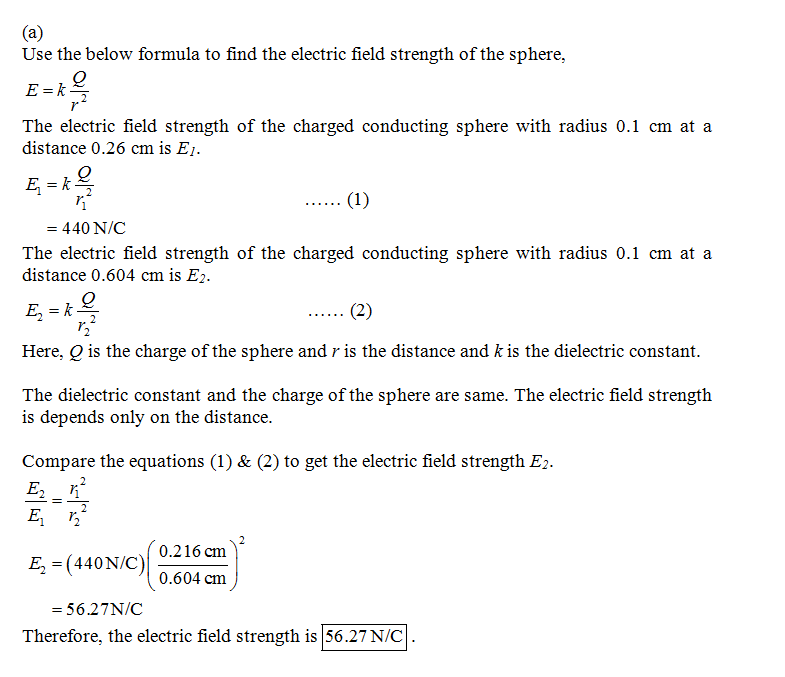

a)At a distance of 0.216cm from the center of a charged conducting sphere with radius 0.100cm, the electric field is 440N/C . What is the electric field 0.604cm from the center of the sphere?

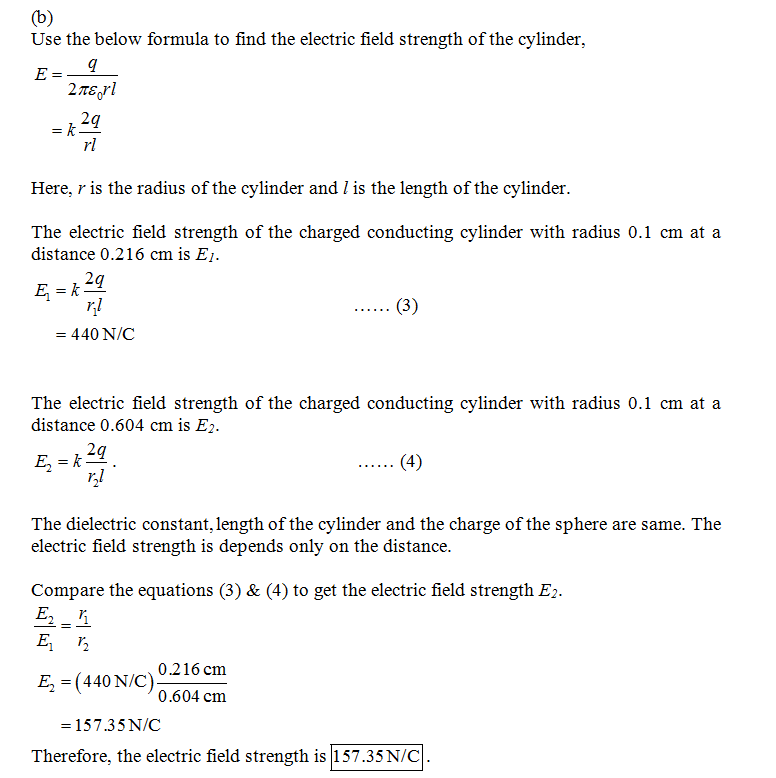

b)At a distance of 0.216cm from the axis of a very long charged conducting cylinder with radius 0.100cm, the electric field is 440N/C . What is the electric field 0.608cm from the axis of the cylinder?

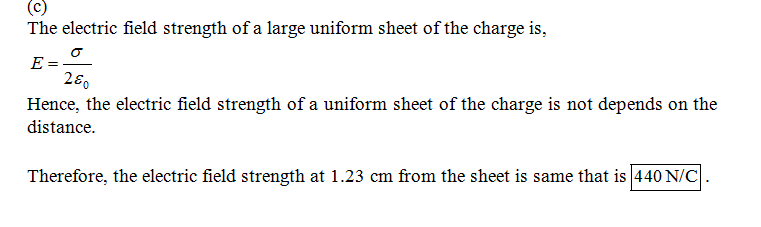

c)At a distance of 0.180cm from a large uniform sheet of charge, the electric field is 440N/C . What is the electric field 1.23cm from the sheet?

Expert Solution

genius_generous answered 1 hour ago

An isolated charged conducting sphere has a radius R = 14.0 cm. At a distance of...

An isolated charged conducting sphere has a radius R = 14.0 cm. At a distance of r = 24.0 cm from the center of the sphere the electric field due to the sphere has a magnitude of E = 4.90 ✕ 104 N/C. (a) What is its surface charge density (in µC/m2)? µC/m2 (b) What is its capacitance (in pF)? pF (c) What If? A larger sphere of radius 30.0 cm is now added so as to be concentric with...

(a) Plot the electric field of a charged conducting solid sphere of radius R as a...

(a) Plot the electric field of a charged conducting solid sphere of radius R as a function of the radial distance r, 0 < r < 1, from the center. (b) Plot the electric field of a uniformly charged nonconducting solid sphere of radius R as a function of the radial distance r, 0 < r < 1, from the center.

A uniformly charged non-conducting sphere of radius 12 cm is centered at x=0. The sphere is...

A uniformly charged non-conducting sphere of radius 12 cm is centered at x=0. The sphere is uniformly charged with a charge density of ρ=+15 μC/m3. Find the work done by an external force when a point charge of +20 nC that is brought from infinity on the x-axis at a distance of 1 cm outside the surface of the sphere. Given the point charge held at its final position, what is the net electric field at x=5 cm on the...

A solid conducting sphere of radius a has its center at the origin and non uniform...

A solid conducting sphere of radius a has its center at the origin and non uniform magnetization given by: M = (a*z^2+b)zhat Estimate the vector potential and the magnetic field in the region of space outside the sphere. Calculate the amount of energy stored in the magnetic field outside the sphere. Explain how there can be an H-field associated with this sphere when there are no free currents.

A hollow, conducting sphere with an outer radius of .250 m and an inner radius of...

A hollow, conducting sphere with an outer radius of .250 m and an inner radius of .200 m has a uniform surface charge density of -6.37 muC/me2.When a charge is now introduced at the center of the cavity inside the sphere, the new charge density on the outside of the sphere is -4.46 muC/me2. What is the charge at the center of the cavity?

A hollow, conducting sphere with an outer radius of 0.240 m and an inner radius of...

A hollow, conducting sphere with an outer radius of 0.240 m and an inner radius of 0.200 m has a uniform surface charge density of +6.37 × 10−6 C/m2. A charge of -0.400 μC is now introduced into the cavity inside the sphere. What is the new charge density on the outside of the sphere? Express your answer with the appropriate units. Calculate the strength of the electric field just outside the sphere. Express your answer with the appropriate units....

A charge q is a distance b > R from the center of a grounded conducting...

A charge q is a distance b > R from the center of a grounded conducting sphere (that is, a sphere at zero potential, perhaps connected by a thin wire to an enclosing spherical shell very, very far away) of radius R. We want to find an image charge q′ at a distance a < R from the center of the sphere along the same line (take it to be the z-axis) as q such that the potential due to...

In Figure, a solid sphere of radius a is concentric with a spherical conducting shell of...

In Figure, a solid sphere of radius a is concentric with a spherical conducting shell of inner radius b = 2.00a and outer radius c = 2.40a. The sphere has a net uniform charge q1 (> 0); the shell has a net charge q2 = -q1.What is the magnitude of the electric field at radial distances (a) r = 0, (b) r = a/2.00, (c) r = a, (d) r = 1.50a, (e) r = 2.30a, and (f)r = 3.50a?...

5) A solid conducting sphere of radius 2.00 cm has a charge of 8.00uC. A conducting...

5) A solid conducting sphere of radius 2.00 cm has a charge of 8.00uC. A conducting spherical shell of inner radius 4.00 cm and outer radius 5.00 cm is concentric with the solid sphere and has a charge of -4.00uC. Find the electric field at a) r= 1.00 cm b) r= 3.00 cm c) r= 4.50 cm d) r= 7.00 cm from the center of this charge configuration.

A solid conducting sphere of radius a carries a net positive charge 2Q. A conducting spherical...

A solid conducting sphere of radius a carries a net positive charge 2Q. A conducting spherical shell of inner radius b and outer radius c is concentric with the solid sphere and carries a net charge –Q. Let c > b > a. a) Discuss the distribution of the charges. b) Calculate the surface charge density on the three surfaces i. radius a ii. radius b iii. radius c. c) Find the electric field in all the regions. Express this...
