Question

2. Another Type of Employee

The files Firm.java, Staff.java, StaffMember.java, Volunteer.java, Employee.java, Executive.java, and

Hourly.java are from Listings 10.1 - 10.7 in the text. The program illustrates inheritance and polymorphism.

In this exercise you will add one more employee type to the class hierarchy (see Figure 9.1 in the text).

The employee will be one that is an hourly employee but also earns a commission on sales. Hence the class, which we’ll name Commission, will be derived from the Hourly class.

Write a class named Commission with the following features:

• It extends the Hourly class.
• It has two instance variables (in addition to those inherited): one is the total sales the employee has made (type double) and the second is the commission rate for the employee (the commission rate will be type double and will represent the percent (in decimal form) commission the employee earns on sales (so .2 would mean the employee earns 20% commission on sales)).
• The constructor takes 6 parameters: the first 5 are the same as for Hourly (name, address, phone number, social security number, hourly pay rate) and the 6th is the commission rate for the employee. The constructor should call the constructor of the parent class with the first 5 parameters then use the 6th to set the commission rate.
• One additional method is needed: public void addSales (double totalSales) that adds the parameter to the instance variable representing total sales.
• The pay method must call the pay method of the parent class to compute the pay for hours worked then add to that the pay from commission on sales. (See the pay method in the Executive class.) The total sales should be set back to 0 (note: you don’t need to set the hours Worked back to 0—why not?).
• The toString method needs to call the toString method of the parent class then add the total sales to that.

To test your class, update Staff.java as follows:

• Increase the size of the array to 8.
• Add two commissioned employees to the staffList—make up your own names, addresses, phone numbers and social security numbers. Have one of the employees earn $12.00 per hour and 20% commission and the other one earn $14.75 per hour and 15% commission.
• For the first additional employee you added, put the hours worked at 35 and the total sales $400; for the second, put the hours at 40 and the sales at $950.

Compile and run the program. Make sure it is working properly.

//*****************************************************************

// Firm.java Author: Lewis/Loftus

//

// Demonstrates polymorphism via inheritance.

// ****************************************************************

public class Firm

{

//--------------------------------------------------------------

// Creates a staff of employees for a firm and pays them.

//--------------------------------------------------------------

public static void main (String[] args)

{

Staff personnel = new Staff();

personnel.payday();

}

}

//********************************************************************

// Staff.java Author: Lewis/Loftus

//

// Represents the personnel staff of a particular business.

//********************************************************************

public class Staff

{

StaffMember[] staffList;

//-----------------------------------------------------------------

// Sets up the list of staff members.

//-----------------------------------------------------------------

public Staff ()

{

staffList = new StaffMember[6];

staffList[0] = new Executive ("Sam", "123 Main Line", "555-0469", "123-45-6789", 2423.07);

staffList[1] = new Employee ("Carla", "456 Off Line", "555-0101", "987-65-4321", 1246.15);

staffList[2] = new Employee ("Woody", "789 Off Rocker", "555-0000", "010-20-3040", 1169.23);

staffList[3] = new Hourly ("Diane", "678 Fifth Ave.",        "555-0690", "958-47-3625", 10.55);

staffList[4] = new Volunteer ("Norm", "987 Suds Blvd.", "555-8374");

staffList[5] = new Volunteer ("Cliff", "321 Duds Lane", "555-7282");

((Executive)staffList[0]).awardBonus (500.00);

((Hourly)staffList[3]).addHours (40);

}

//-----------------------------------------------------------------

// Pays all staff members.

//-----------------------------------------------------------------

public void payday ()

{

double amount;

for (int count=0; count < staffList.length; count++)

{

System.out.println (staffList[count]);

amount = staffList[count].pay(); // polymorphic

if (amount == 0.0)

System.out.println ("Thanks!");

else

System.out.println ("Paid: " + amount);

System.out.println ("------------------------------------");

}

}

}

//******************************************************************

// StaffMember.java Author: Lewis/Loftus

//

// Represents a generic staff member.

//******************************************************************

abstract public class StaffMember

{

protected String name;

protected String address;

protected String phone;

//---------------------------------------------------------------

// Sets up a staff member using the specified information.

//---------------------------------------------------------------

public StaffMember (String eName, String eAddress, String ePhone)

{

name = eName;

address = eAddress;

phone = ePhone;

}

//---------------------------------------------------------------

// Returns a string including the basic employee information.

//---------------------------------------------------------------

public String toString()

{

String result = "Name: " + name + "\n";

result += "Address: " + address + "\n";

result += "Phone: " + phone;

return result;

}

//---------------------------------------------------------------

// Derived classes must define the pay method for each type of

// employee.

//---------------------------------------------------------------

public abstract double pay();

}

//******************************************************************

// Volunteer.java Author: Lewis/Loftus

//

// Represents a staff member that works as a volunteer.

//******************************************************************

public class Volunteer extends StaffMember

{

//---------------------------------------------------------------

// Sets up a volunteer using the specified information.

//---------------------------------------------------------------

public Volunteer (String eName, String eAddress, String ePhone)

{

super (eName, eAddress, ePhone);

}

//---------------------------------------------------------------

// Returns a zero pay value for this volunteer.

//---------------------------------------------------------------

public double pay()

{

return 0.0;

}

}

//******************************************************************

// Employee.java Author: Lewis/Loftus

//

// Represents a general paid employee.

//******************************************************************

public class Employee extends StaffMember

{

protected String socialSecurityNumber;

protected double payRate;

//---------------------------------------------------------------

// Sets up an employee with the specified information.

//---------------------------------------------------------------

public Employee (String eName, String eAddress, String ePhone,

String socSecNumber, double rate)

{

super (eName, eAddress, ePhone);

socialSecurityNumber = socSecNumber;

payRate = rate;

}

//---------------------------------------------------------------

// Returns information about an employee as a string.

//---------------------------------------------------------------

public String toString()

{

String result = super.toString ();

result += "\nSocial Security Number: " + socialSecurityNumber;

return result;

}

//---------------------------------------------------------------

// Returns the pay rate for this employee.

//---------------------------------------------------------------

public double pay()

{

return payRate;

}

}

//******************************************************************

// Executive.java Author: Lewis/Loftus

//

// Represents an executive staff member, who can earn a bonus.

//******************************************************************

public class Executive extends Employee

{

private double bonus;

//-----------------------------------------------------------------

// Sets up an executive with the specified information.

//-----------------------------------------------------------------

public Executive (String eName, String eAddress, String ePhone,

String socSecNumber, double rate)

{

super (eName, eAddress, ePhone, socSecNumber, rate);

bonus = 0; // bonus has yet to be awarded

}

//-----------------------------------------------------------------

// Awards the specified bonus to this executive.

//-----------------------------------------------------------------

public void awardBonus (double execBonus)

{

bonus = execBonus;

}

//-----------------------------------------------------------------

// Computes and returns the pay for an executive, which is the

// regular employee payment plus a one-time bonus.

//-----------------------------------------------------------------

public double pay()

{

double payment = super.pay() + bonus;

bonus = 0;

return payment;

}

}

//******************************************************************

// Hourly.java Author: Lewis/Loftus

//

// Represents an employee that gets paid by the hour.

//*******************************************************************

public class Hourly extends Employee

{

private int hoursWorked;

//-----------------------------------------------------------------

// Sets up this hourly employee using the specified information.

//-----------------------------------------------------------------

public Hourly (String eName, String eAddress, String ePhone,

String socSecNumber, double rate)

{

super (eName, eAddress, ePhone, socSecNumber, rate);

hoursWorked = 0;

}

//-----------------------------------------------------------------

// Adds the specified number of hours to this employee's

// accumulated hours.

//-----------------------------------------------------------------

public void addHours (int moreHours)

{

hoursWorked += moreHours;

}

//-----------------------------------------------------------------

// Computes and returns the pay for this hourly employee.

//-----------------------------------------------------------------

public double pay()

{

double payment = payRate * hoursWorked;

hoursWorked = 0;

return payment;

}

//-----------------------------------------------------------------

// Returns information about this hourly employee as a string.

//-----------------------------------------------------------------

public String toString()

{

String result = super.toString();

result += "\nCurrent hours: " + hoursWorked;

return result;

}

}

Answer 1

//********************************************************************

// Staff.java (Updated)

//

// Represents the personnel staff of a particular business.

//********************************************************************

class Staff

{

    StaffMember[] staffList;

//-----------------------------------------------------------------

// Sets up the list of staff members.

//-----------------------------------------------------------------

    public Staff()

    {

        staffList = new StaffMember[8];

        staffList[0] = new Executive("Sam", "123 Main Line", "555-0469", "123-45-6789", 2423.07);

        staffList[1] = new Employee("Carla", "456 Off Line", "555-0101", "987-65-4321", 1246.15);

        staffList[2] = new Employee("Woody", "789 Off Rocker", "555-0000", "010-20-3040", 1169.23);

        staffList[3] = new Hourly("Diane", "678 Fifth Ave.", "555-0690", "958-47-3625", 10.55);

        staffList[4] = new Volunteer("Norm", "987 Suds Blvd.", "555-8374");

        staffList[5] = new Volunteer("Cliff", "321 Duds Lane", "555-7282");

        staffList[6] = new Commision("rag", "div unath", "555-1234", "123-465-7890", 12, 0.2);
        ((Hourly) staffList[6]).addHours(35);
        ((Commision) staffList[6]).addSales(400);

        staffList[7] = new Commision("rams", "white cloud", "555-1823", "123-546-7890", 14.75, 0.15);
        ((Hourly) staffList[7]).addHours(40);
        ((Commision) staffList[7]).addSales(950);

        ((Executive) staffList[0]).awardBonus(500.00);

        ((Hourly) staffList[3]).addHours(40);

    }

//-----------------------------------------------------------------

// Pays all staff members.

//-----------------------------------------------------------------

    public void payday()

    {

        double amount;

        for (int count = 0; count < staffList.length; count++)

        {

            System.out.println(staffList[count]);

            amount = staffList[count].pay(); // polymorphic

            if (amount == 0.0)

                System.out.println("Thanks!");

            else

                System.out.println("Paid: " + amount);

            System.out.println("------------------------------------");

        }

    }

}

Please find the new commision class:
public class Commision extends Hourly {
    double totalSales;
    double commisionRate;

    public Commision(String eName, String eAddress, String ePhone, String socSecNumber, double rate, double commisionRate) {
        super(eName, eAddress, ePhone, socSecNumber, rate);
        this.commisionRate = commisionRate;
    }

    public void addSales(double totalSales) {
        this.totalSales = totalSales;
    }

    @Override
    public double pay() {
        double pay = super.pay() + commisionRate * totalSales;
        totalSales = 0;
        return pay;
    }

    @Override
    public String toString() {
        String result = super.toString();
        result += "\ntotal sales: " + totalSales;
        return result;
    }
}
Note: rest of the classes remains same

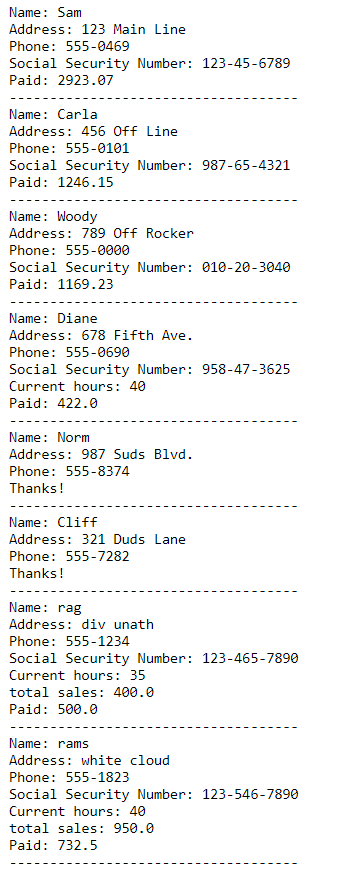

sample output:
