In an engine, a piston oscillates with simple harmonic motion so that its position varies according...

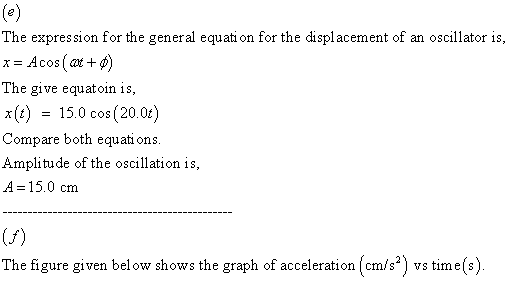

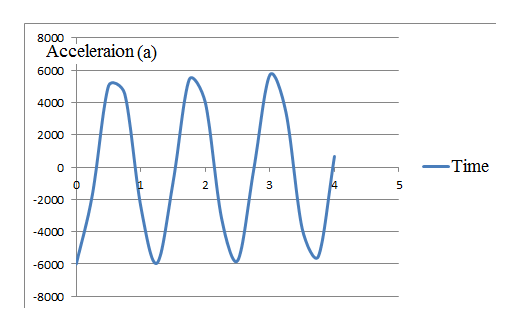

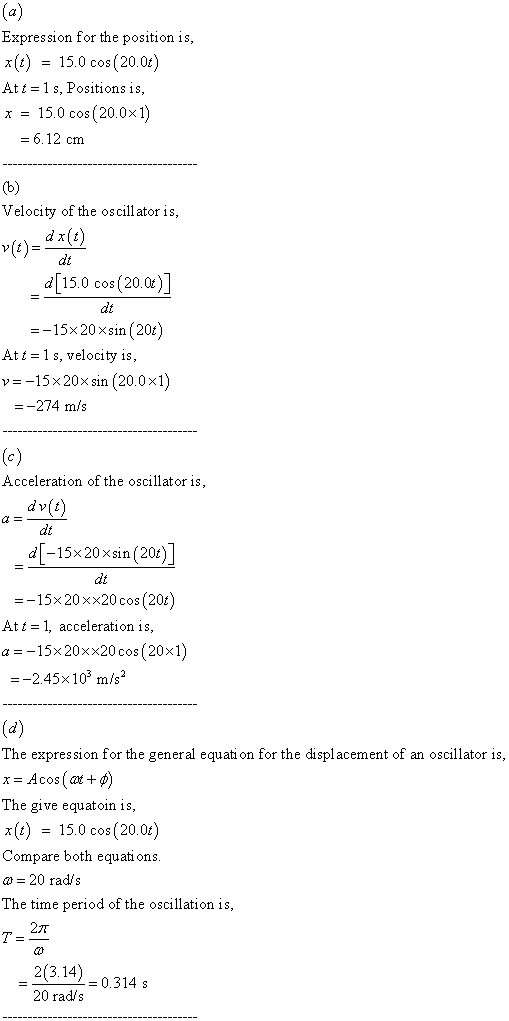

In an engine, a piston oscillates with simple harmonic motion so that its position varies according to the expression x(t) = 15.0 cos(20.0t) where xis in centimeters and t is in seconds. At t = 1 s, find (a) the position of the piston, (b) its velocity, and (c) its acceleration. Find (d) the period and (e) the amplitude of the motion. (f) Sketch a plot of the acceleration as a function oftime. Scale the plot properly.

Solutions

Expert Solution


Related Solutions

A piston in a gasoline engine is in simple harmonic motion. The engine is running at...
A piston in a gasoline engine is in simple harmonic motion. The engine is running at the rate of 3 410 rev/min. Taking the extremes of its position relative to its center point as ±4.50 cm. (a) Find the magnitude of the maximum velocity of the piston. m/s (b) Find the magnitude of the maximum acceleration of the piston km/s2
During an earthquake, a floor oscillates horizontally in approximately simple harmonic motion. Assume it oscillates at...
During an earthquake, a floor oscillates horizontally in approximately simple harmonic motion. Assume it oscillates at a single frequency with a period of 0.67 s. (a) After the earthquake, you are in charge of examining the video of the floor motion and discover that a box on the floor started to slip when the amplitude reached 11 cm. From your data, determine the coefficient of static friction between the box and the floor. ______________ (b) If the coefficient of friction...
And object is undergoing simple harmonic motion along the x-axis. Its position is described as a...
And object is undergoing simple harmonic motion along the x-axis. Its position is described as a function of time by x(t) = 2.7 cos(3.1t – 1.2), where x is in meters, the time, t, is in seconds, and the argument of the cosine is in radians. A) Find the amplitude of the simple harmonic motion, in meters. B) What is the value of the angular frequency, in radians per second? C) Determine the position of the object, in meters, at...
An object is undergoing simple harmonic motion along the x-axis. Its position is described as a...
An object is undergoing simple harmonic motion along the x-axis. Its position is described as a function of time by x(t) = 5.5 cos(6.9t – 1.1), where x is in meters, the time, t, is in seconds, and the argument of the cosine is in radians. Part (a) Find the amplitude of the simple harmonic motion, in meters. 14% Part (b) What is the frequency of the motion, in hertz? 14% Part (c) Determine the position of the object, in...
Problem 1. A mass oscillates on a horizontal spring performing a simple harmonic motion. Time t...
Problem 1. A mass oscillates on a horizontal spring performing a simple harmonic motion. Time t = 0.00 sec corresponds to the moment when the mass is at the location 15.0 cm to the left of the equilibrium, and moving to the right. 1. If the maximal speed of this oscillator is 1.50 m/s, and the maximal magnitude of its acceleration is 4.50 m/s2 what is the amplitude and the period of this oscillator? 2. Using circle of reference, calculate...
An object is excuting simple harmonic motion. Which is a true statement regarding its motion? a....
An object is excuting simple harmonic motion. Which is a true statement regarding its motion? a. its velocity is never zero b. its acceleration is never zero c. its velocity and accelertation are simultaneously zero d. its velocity is zero when tis acceleration is a maximum e. its acceleration is maximum when its velocity is maximum
Simple harmonic motion questions: Part 1. Determine the position in the oscillation where an object in...
Simple harmonic motion questions: Part 1. Determine the position in the oscillation where an object in simple harmonic motion: (Be very specific, and give some reasoning to your answer.) has the greatest speed has the greatest acceleration experiences the greatest restoring force experiences zero restoring force Part 2. Describe simple harmonic motion, including its cause and appearance. (Make sure to use your own words, and be very specific. And a few examples would be helpful.)
An object is undergoing uniform circular motion. True or False: A graph of its position oscillates...
An object is undergoing uniform circular motion. True or False: A graph of its position oscillates back and forth, but not with simple harmonic motion. A.) True B.) False
Write a discussion and conclusion for simple harmonic motion.
Write a discussion and conclusion for simple harmonic motion.
particle is in simple harmonic motion along the x axis. The amplitude of the motion is...
particle is in simple harmonic motion along the x axis. The amplitude of the motion is xm. When it is at x = x1, its kinetic energy is K = 5 J and its potential energy (measured with U = 0 at x = 0) is U = 3 J. When it is at x = −1 2x1, the kinetic and potential energies are: A. K = 5 J and U = 3J B. K = 5 J and U...
