The magnetic flux density in a region of free space is given by B = −8x...

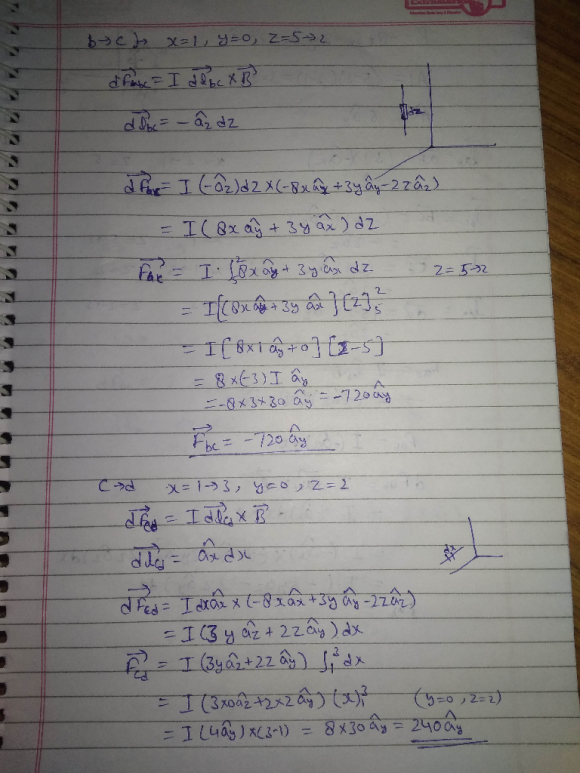

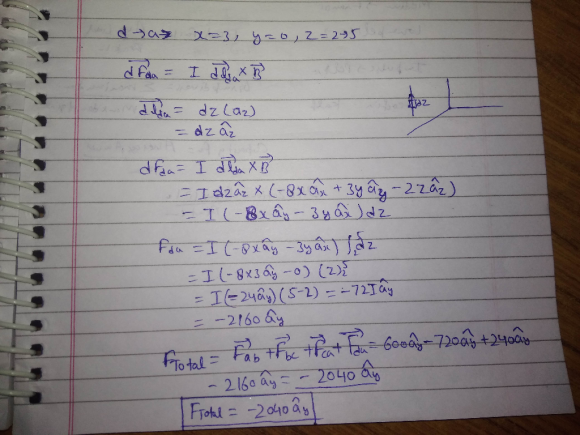

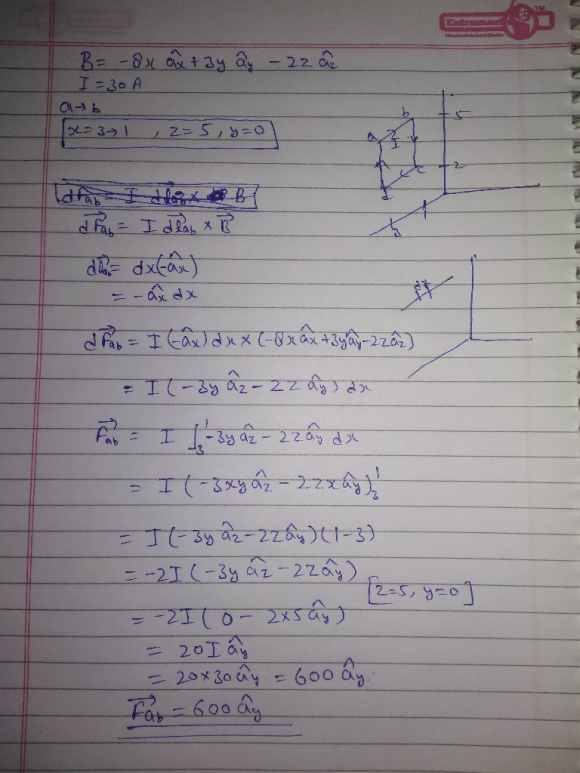

The magnetic flux density in a region of free space is given by B = −8x ax + 3y ay − 2z az T. Find the total force on the rectangular loop shown which lies in the plane y = 0 and is bounded by x = 1, x = 3, z = 2, and z = 5, all dimensions in cm. with I=30 A

Expert Solution

Manojponduru answered 3 months ago
