(a)One end of a string is attached to a wall and the other end is attached...

(a)One end of a string is attached to a wall and the other end is attached to a mass sitting on a ramp tilted at an angle of 35 degrees. It takes a pulse 10 ms to travel the length of the 1 m string. The string has a mass 1.5 g. What is the mass that is attached to the string?



(b) The string is replaced by two strings that are knotted together, L1 has a length 60 cm and L2 has a length of 40 cm. They have a linear mass density of of mu1 = 1.4 x 10-4 kg/m and mu2 = 2.8 x 10-4 kg/m. Like before, they are attached to the mass you found in part a. A pulse is sent from each end of the string. Which pulse meets the knot first?

Solutions

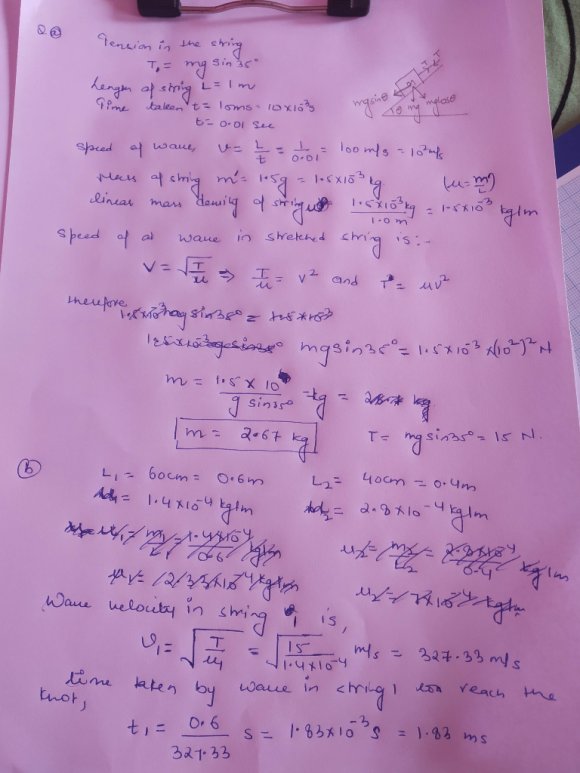

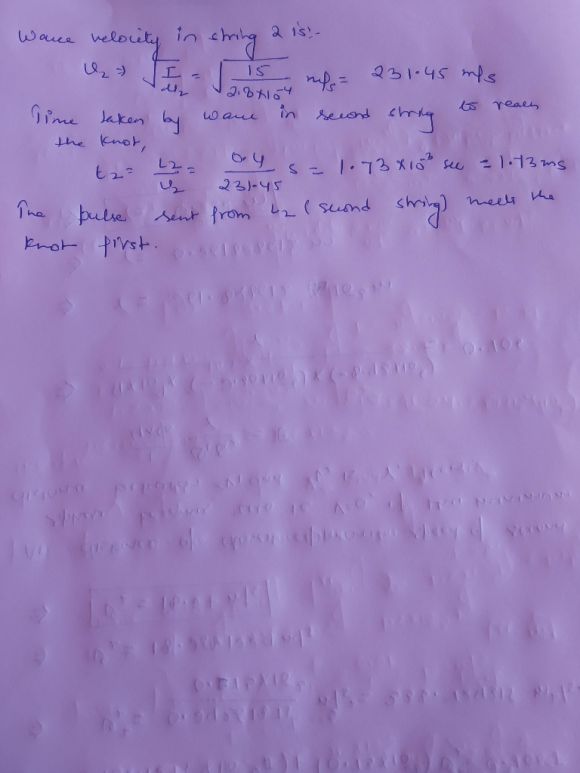

Expert Solution
