Research the System Stability Index (SSI). Write a brief summary of its purpose and why it might be a useful tool for a server admin.
Research the netstat command-line tool. Write a brief summary of its usage, options, and why it might be a useful tool for a server admin
System Stability Index (SSI):
Check your System Stability Index:

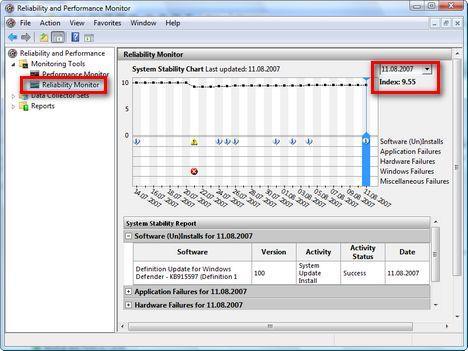

In the Reliability and Performance Monitor window, go to Reliability and Performance -> Monitoring Tools -> Reliability Monitor.
You will see a graph with dates, symbols and ratings. You can select any day from the graph by clicking on its column and the Reliability Monitor will show you the System Stability Index for that day together with additional information, in case any important system events took place.
To view all available historical data, click the drop-down date menu and click Select all. If more than 30 days of data are available, you can also use the scroll bar at the bottom of the System Stability Chart to browse dates outside the visible range.
The System Stability Index is as shown in the screenshot above. The additional information is presented below the graph and has the following structure:
release a new free GUI tool today to assist in troubleshooting Windows systems – the Reliability Viewer for Windows. It is based on the concept of the built-in Windows Reliability Monitor, but can be used to display data from both the local or remote systems,
The application can also generate a system stability chart using Microsoft Excel, which uses reliability metrics to give an overview of the stability of the system over time.
Netstat:
Netstat is a useful tool for checking network and Internet connections. Some useful applications for the average PC user are considered, including checking for malware connections.
To execute netstat on windows, you must execute a START> RUN> CMD.
The command syntax is
netstat [-a] [-b] [-e] [-n] [-o] [-p proto] [-r]
[-s] [-v] [interval]
Switch | Description |
---|---|
-a | Displays all connections and listening ports |
-b | Displays the executable involved in creating each connection or listening port. (Added in XP SP2.) |
-e | Displays Ethernet statistics |
-n | Displays addresses and port numbers in numerical form |
-o | Displays the owning process ID associated with each connection |
-p proto | Shows connections for the protocol specified by proto; proto may be any of: TCP, UDP, TCPv6, or UDPv6. |
-r | Displays the routing table |
-s | Displays per-protocol statistics |
-v | When used in conjunction with -b, will display sequence of components involved in creating the connection or listening port for all executables. |
[interval] | An integer used to display results multiple times with specified number of seconds between displays. Continues until stopped by command ctrl+c. D |
examples for netstat:
Accessing statistics using the ICMPv6 protocol
If you only want to obtain statistics on the ICMPv6 protocol, enter the following command in the command line:
netstat -s -p icmpv6
Active IPv4 connections, you can do this using the netstat command:
netstat -p IP
if admin wants to open TCP/IP ports in windows:
An IP address specifies a computer—or other network device—on a network. When one device sends traffic to another, the IP address is used to route that traffic to the appropriate place.
iew Port Use Along with Process Names
First, you’ll need to open the Command Prompt in administrator mode. Hit Start, and then type “command” into the search box. When you see “Command Prompt” appear in the results, right-click it and choose “Run as administrator.”
At the Command Prompt, type the following text and then hit Enter:
netstat -ab
