Question

In: Computer Science

Consider the language L over alphabets (a, b) that produces strings of the form aa* (a...

Consider the language L over alphabets (a, b) that produces strings of the form aa* (a + b) b*a.

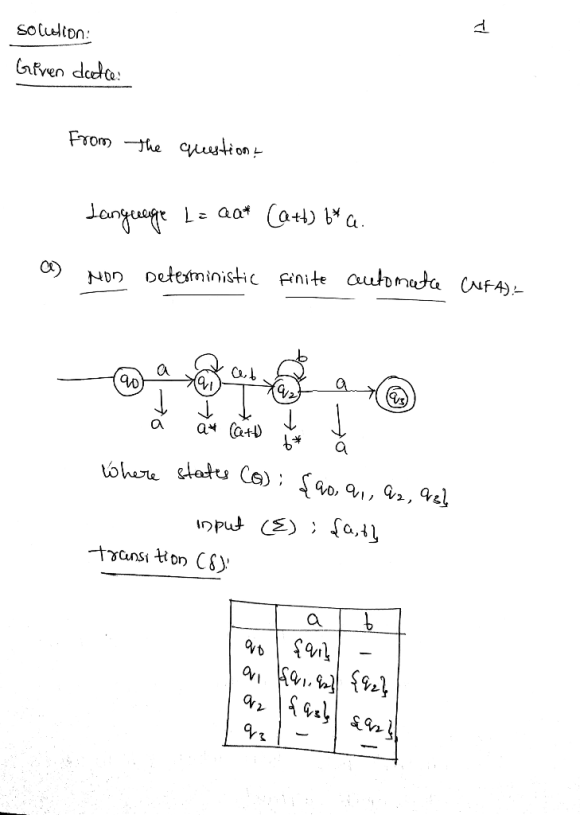

a) Construct a nondeterministic finite automata (NFA) for the language L given above.

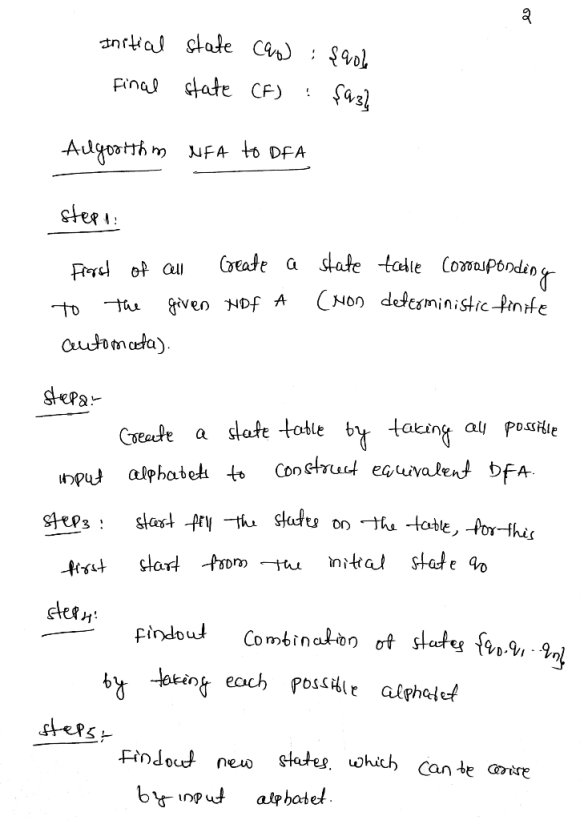

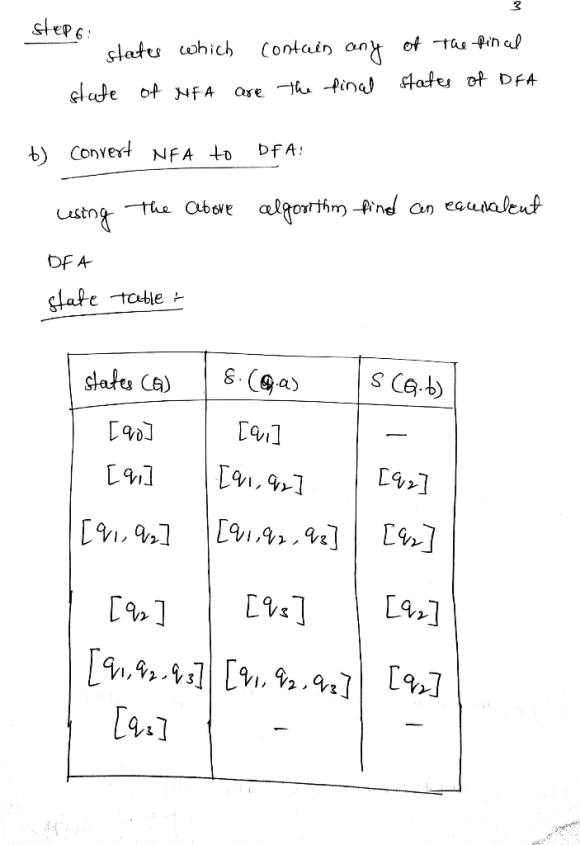

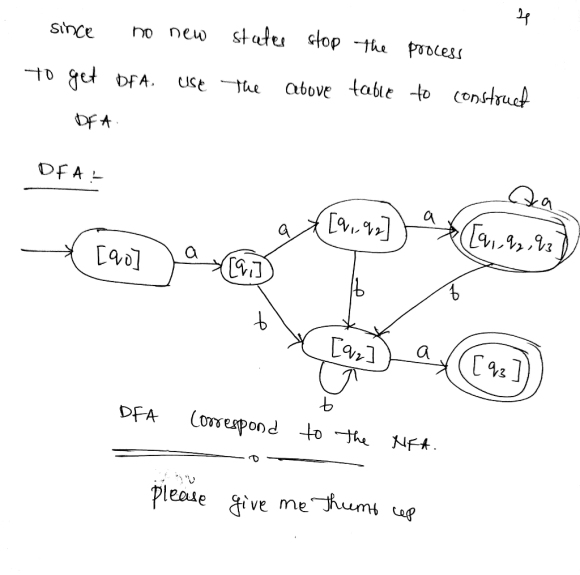

b) Construct a deterministic finite automaton (DFA) for the NFA you have constructed above.

Solutions

Expert Solution
