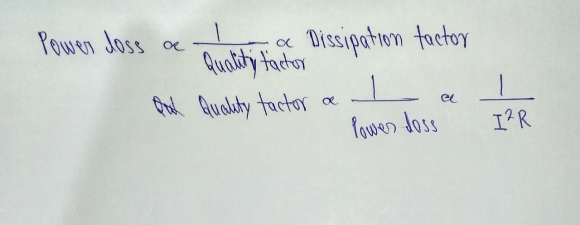

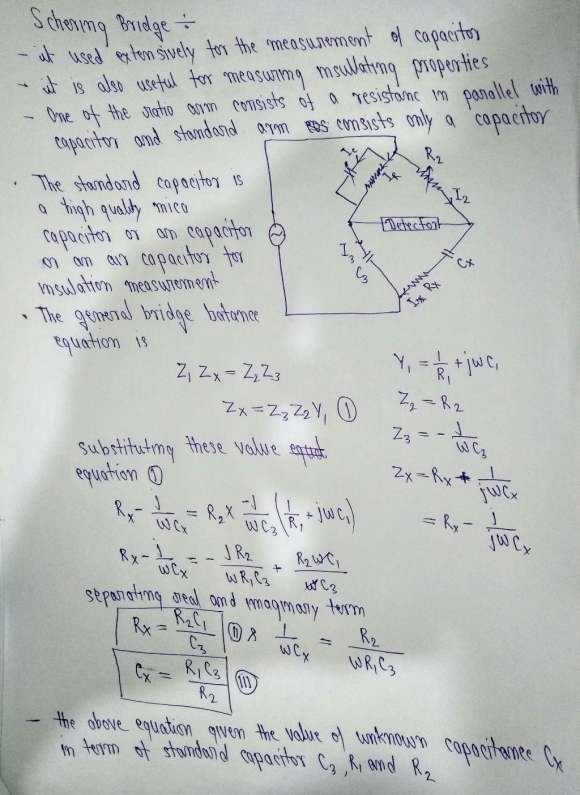

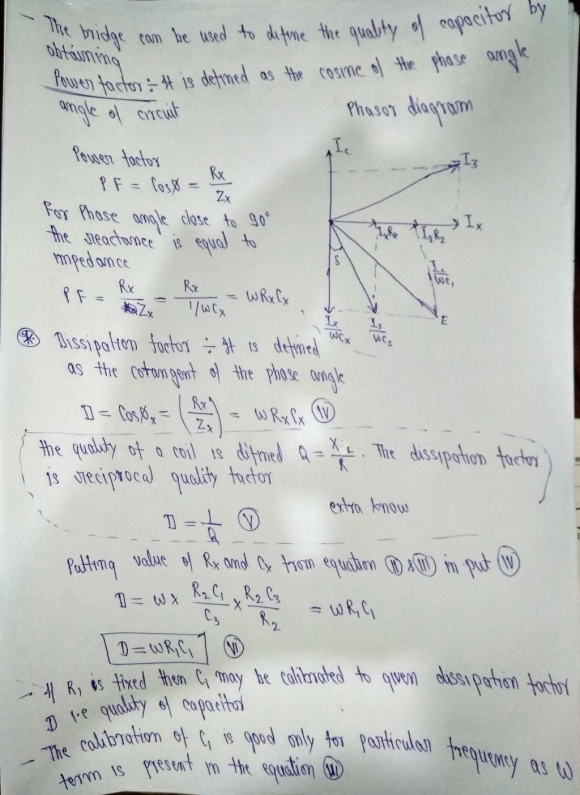

using schering bridge to determine power loss in dielectrics

Expert Solution

Manojponduru answered 1 month ago
