Question

Use a diagram to describe a home network, include all connections and nodes, all wired and wireless connected devices.

Answer 1

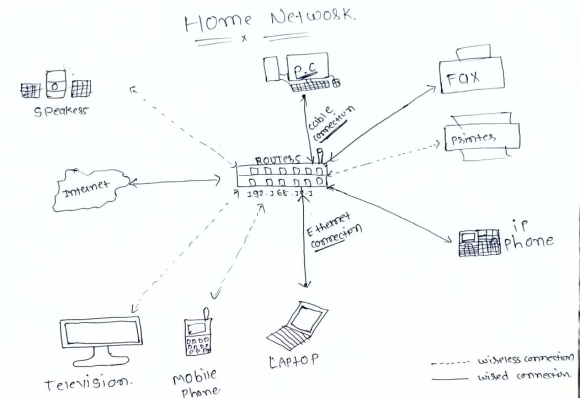

Use a diagram to describe a home network, including all connections and nodes, all wired and wireless connected devices.

HOME NETWORK:-

• home network is a two or more computer are internally connected with each other from a local area network for an exchanging of information, knowledge, and data.
• For example, if you have an old computer without a Pendrive slot, you can access your newer computer's Pendrive slot instead of purchasing one for your older computer.
• Sharing data and file throwe a home network is also easier than copying a file to a floppy or hard disk and running to the other computer to use the file.
• There is a total of five types of different home networks, two that use wire connections and three that use wireless connections: -

1. Cable connection: -

• this type of connection allows connecting computers via plug throw connecting devices.
• it uses a serial, parallel, or Universal Serial Bus port for connecting devices.
• This is possible when two devices are in the nearest distance it is not used for long-distance.
• speed of data transformation is high compare to a wireless connection.
• example:- LAN cable

2. Ethernet connection:-

• This type of connection allows connecting computers via peer-to-peer Ethernet network requires inside each computer and interconnecting them with a coaxial cable or a twisted pair cable.
• You need to install a driver or software of the connection configuration.
• The main drawback of this is to difficulty in hardware installation time.
• it is has a high cost compare to a simple cable connection.
• example:-  coaxial cable and twisted pair cable.

3. AC (Alternating current ) network:-

• An AC (alternating current) network may be a chance once a computer area unit in many locations in your house.
• you do not drill any holes or wire any rooms. you just plug one finish of associate adapter into the parallel interface of your laptop associated plug the opposite finish into an outlet. you are doing identical for every device.
• Your information is transmitted through the facility lines.
• you'll be able to have a ready-made network anyplace within the house at any time.
• once getting the instrumentation and package for your AC network, check that it includes additional outlet strips associated with an adapter for your printer.
• example:- power lines

4. Tele-Phone network:-

• This type of wireless network was developed by the Home Phoneline Networking Alliance (HomePNA) it offers us an easy and inexpensive wireless connection solution that uses existing phone lines.
• The HomePNA technology is not able to connect with your voice and data transmission.
• it means that with the same time you can use your phone and use an internet connection too.
• for this type of network is require an install PCI card and software drivers.
• the transformation of data is nearest to 10 Mbps.
• Example:- modem and telephone line

5. Radio Free (RF) network:-

• This type of wireless network uses radio frequency (RF) waves to transmit data through radio waves and it is capable of transmit throwe walls and floors up to 800 feet.
• In this type of network has only hardware is a special card inserted into each devices or a transceiver plugged into each device in parallel port.
• The main problem with radio free networks is it is interference from other wireless communication devices which may affect packet loss or communication break between two devices.
• Example:- mobile communication, Gps, Wifi, Router.
