Question

In: Computer Science

The five key activities in an object-oriented design process are: a. Define the context and modes...

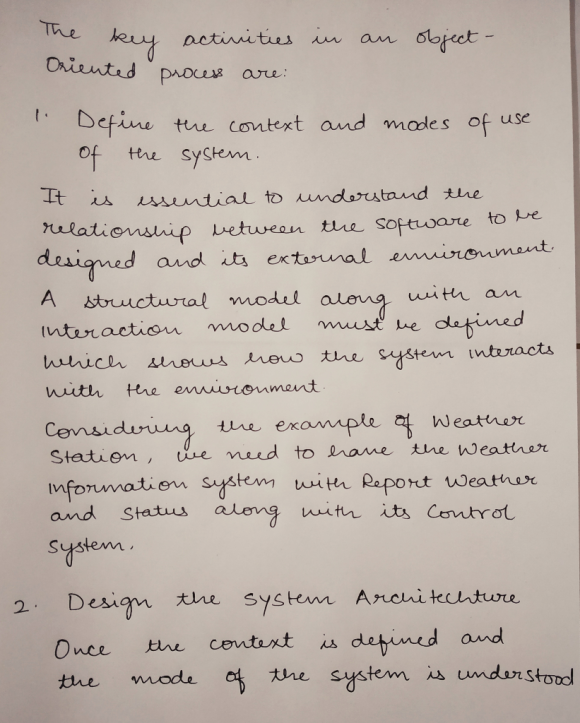

The five key activities in an object-oriented design process are:

a. Define the context and modes of use of the system;

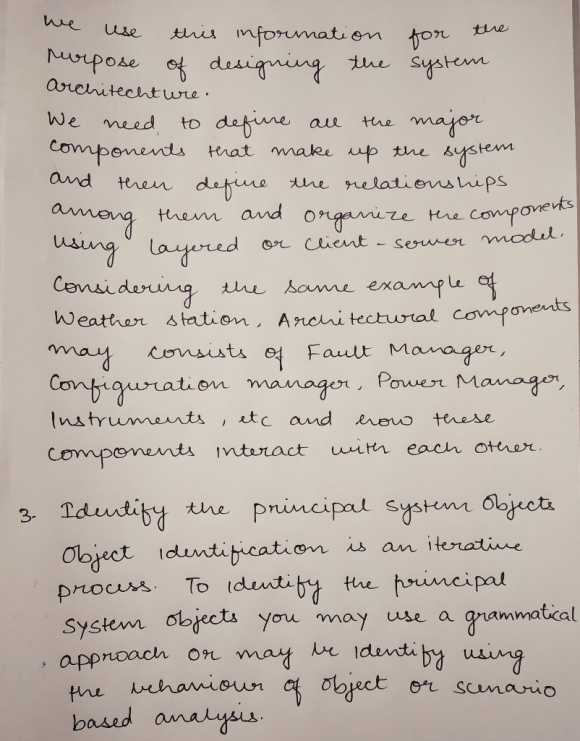

b. Design the system architecture;
c. Identify the principal system objects;

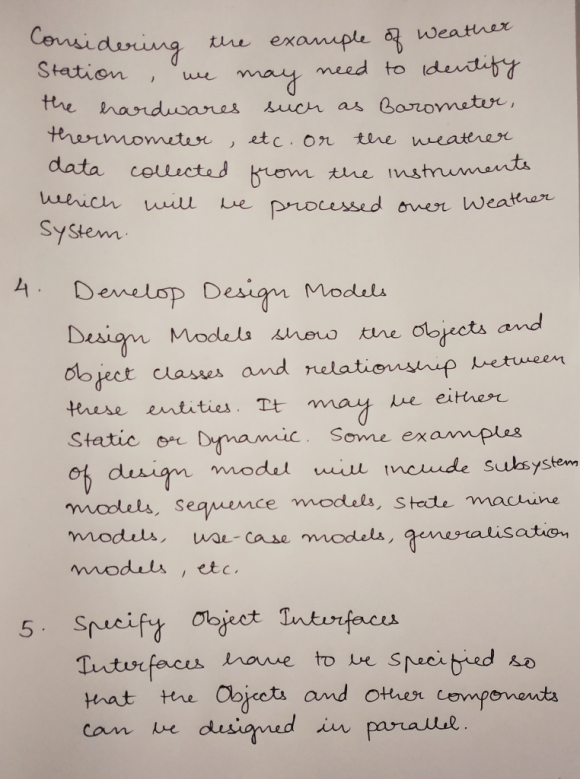

d. Develop design models;

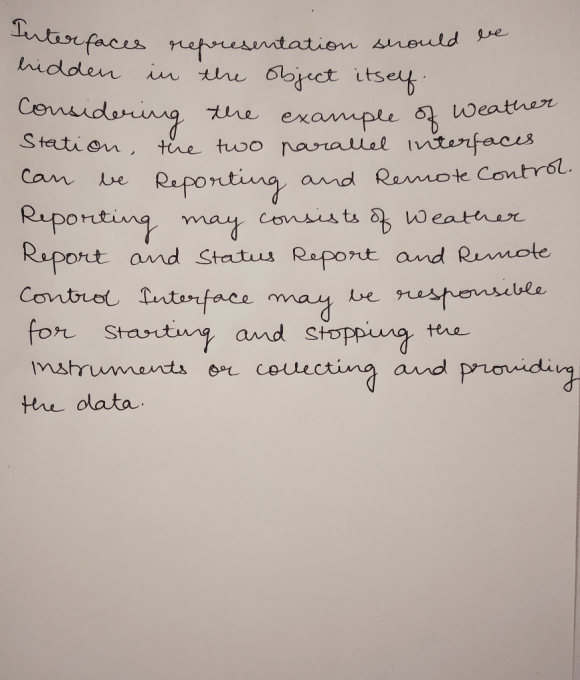

e. Specify object interfaces.

Please give me an explanation and example in detail for the five activities.

Solutions

Expert Solution

​​​​​​

venereology answered 2 months ago
