Question

In: Electrical Engineering

Sketch a circuit for a basic class-A power amplifier and determine the maximum efficiency of this...

Sketch a circuit for a basic class-A power amplifier and determine the maximum efficiency of this amplifier configuration. Under what conditions is amplifier efficiency at a maximum? How realistic are these

assumptions?

Solutions

Expert Solution

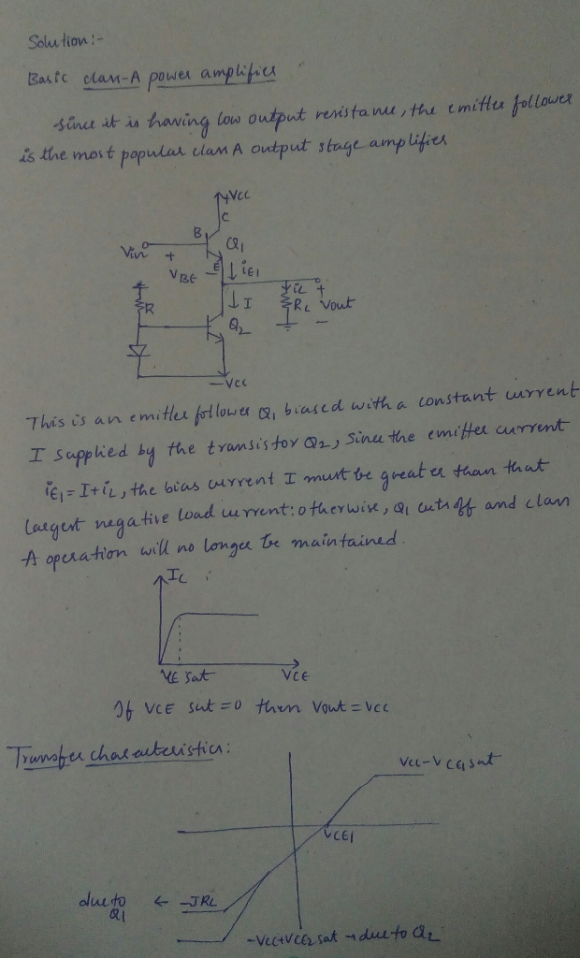

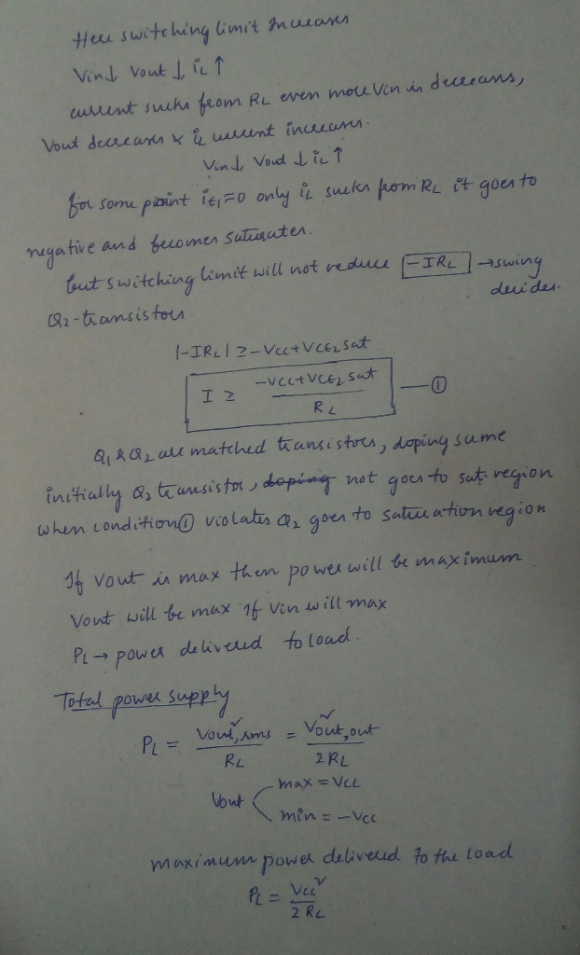

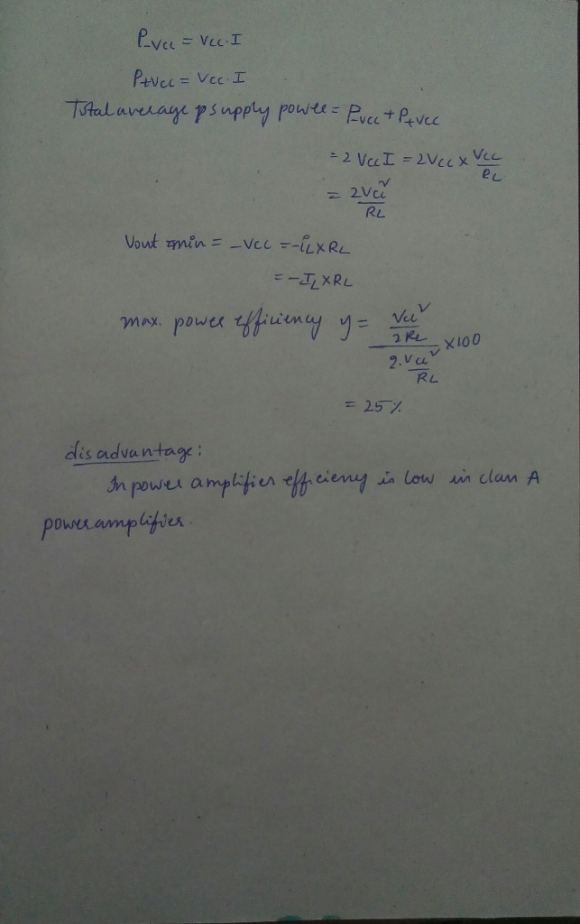

The absolutely lowest output voltage is that given -Vcc+Vce2sat.and is achieved provided the bias current I is greater than the magnitude of the corresponding load current which is equation 1 given below.

Thank you...
