1. Convert the binary data “110101” into analog waveforms using following modulation techniques: a. Two level...

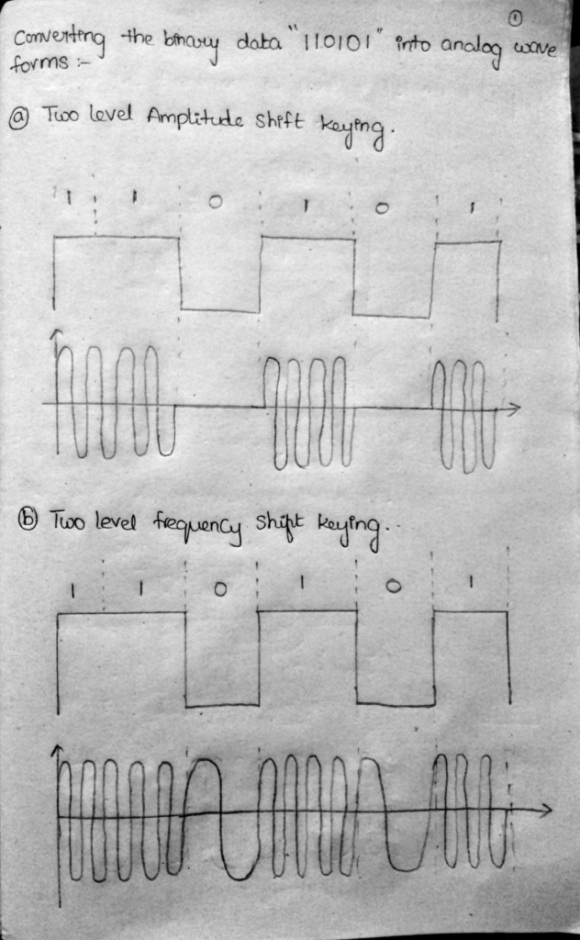

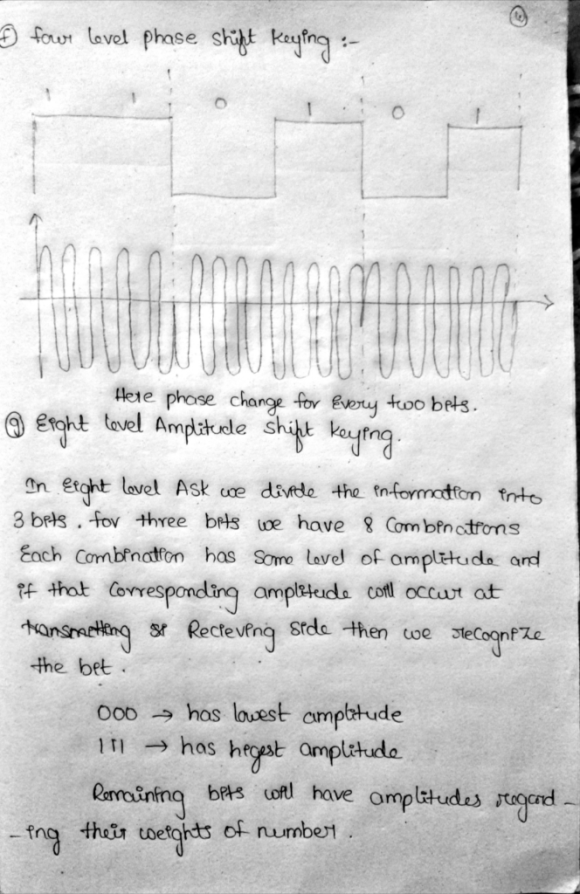

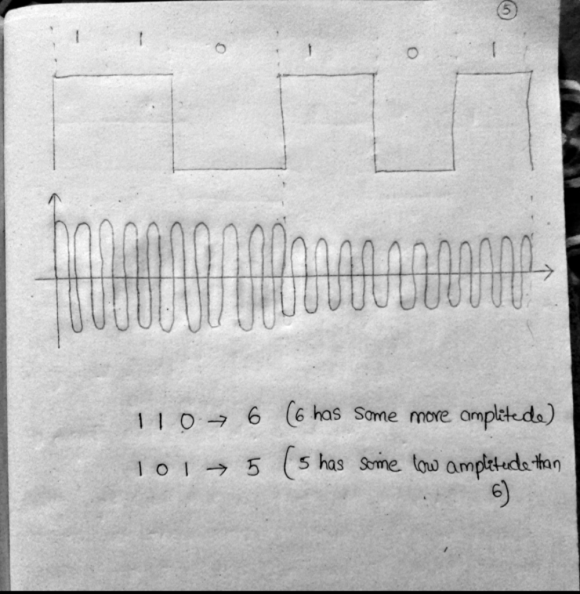

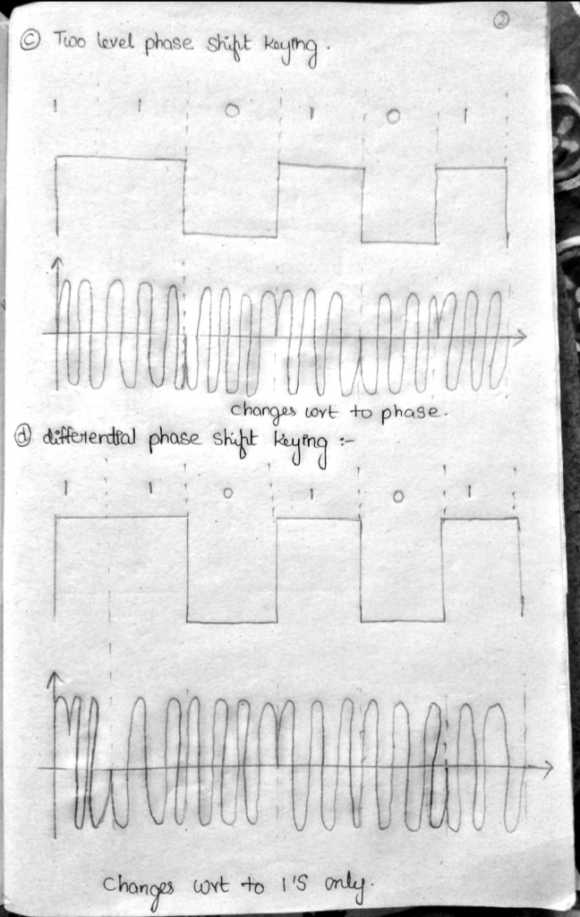

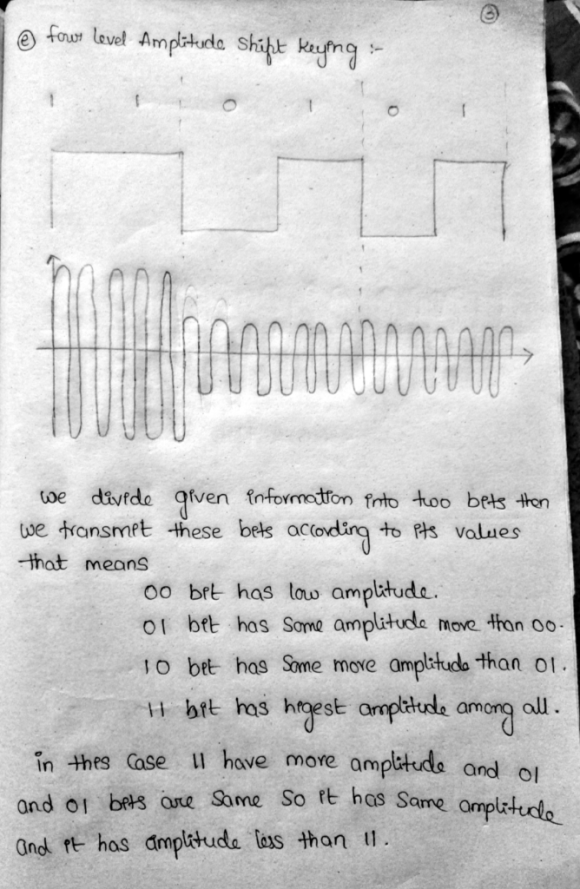

1. Convert the binary data “110101” into analog waveforms using following modulation techniques: a. Two level Amplitude Shift Keying b. Two level Frequency Shift Keying c. Two level Phase Shift Keying d. Differential Phase shift keying e. Four level Amplitude Shift Keying f. Four level Phase Shift Keying g. Eight level Amplitude Shift Keying

Expert Solution

venereology answered 8 months ago
