Question

themes of gas metal arc welding...
I need by report....
so give me like that

pleasee give more details about that you can take 5 hour

Answer 1

Contents

1.0        INTRODUCTION.. 2

2.0        OBJECTIVES. 3

3.0        SAFETY IN THE WORKSHOP. 3

3.1        Personal Protection. 3

3.2        Safety Precaution. 3

4.0        Material and Tools. 4

5.0        TYPES OF WELDING JOINT. 9

5.1        Patent-Pending Process. 9

5.2        Close Butt Joints. 10

5.3        Corner Joints. 12

6.0        SUGGESTIONS FOR IMPROVEMENT. 13

7.0        CONCLUSION.. 14

1.0     INTRODUCTION

• Arc welding is a type of welding that uses a welding power supply to create an electric arc between an electrode and the base material to melt the metals at the welding point. They can use either direct (DC) or alternating (AC) current, and consumable or non-consumable electrodes. The welding region is usually protected by some type of shielding gas, vapor, or slag. Arc welding processes may be manual, semi-automatic, or fully automated. First developed in the late part of the 19th century, arc welding became commercially important in shipbuilding during the Second World War. Today it remains an important process for the fabrication of steel structures and vehicles.
• Arc welding is one of alternative for joining process in manufacturing. Arc welding process had done by create an electric arc between electrode and the base material to melt the metal at the welding point using welding power supply. The welding region is sometimes protected by some type of inert or semi-inert gas, known as a shielding gas and sometime adds by an evaporating filler material. Shielded metal arc welding (SMAW), also known as manual metal arc (MMA) welding or informally as stick welding, is a manual arc welding process that uses a consumable electrode coated in flux to lay the weld. They can use either direct current (DC) or alternating current (AC) from a welding power supply, used to form an electric arc between the electrode and the metal to be joined. As the weld is laid, the flux coating of the electrode disintegrates, giving off vapors that serve as a shielding gas and providing a layer of slag, both of which protect the weld area from atmospheric contamination. Gas metal arc welding (GMAW), sometimes referred to by its sub types metal inert gas (MIG) welding or metal active gas (MAG) welding, is a semi-automatic or automatic arc welding process in which a continuous and consumable wire electrode and a shielding gas are fed through a welding gun. A constant voltage, direct current power source is most commonly used with GMAW, but constant current systems, as well as alternating current, can be used. There are four primary methods of metal transfer in GMAW, called globular, short-circuiting, spray, and pulsed-spray, each of which

2.0     OBJECTIVES

At the end of this arc welding learning, student should be able to:

• Provide a brief introduction to engineering students about metal arc welding.
• Learn the basic techniques of welding.
• Give a real life experience of metal arc welding to engineering students.

3.0     SAFETY IN THE WORKSHOP

3.1        Personal Protection

• Wear Approved Eye Protection
• Wear Flame Resistant Clothing
• Wear Long Sleeves, Pocket Flaps and No Cuffs
• Wear Approved safety boot
• Wear Approved Hand Protection

3.2        Safety Precaution

• Please wear all the personal protective equipment recommended by OSHA.
• Always protect your eyes from arc rays.
• Protect your face and body from heat radiation and molten metal.
• Move all the flammable material off the working place or cover it up using fireproof material.
• Make sure that the welding machine is earthen.
• Make sure that all line holder, earth clip and connection placed on good place.
• Make sure that your working place is clean and tidy.
• Make sure that all electric connection is tight, clean and dry.
• Avoid pulling the cable on top or near sharp things.
• Do not ever scratch arc on top of gas cylinder.
• Turn off the welding machine when not in use.
• Avoid welding cable from be in contact with hot metal, water, oil and grease.
• Wear all safety clothing when welding.
• All equipment such as hammer, chisel, brush and others must be well maintained.
• A welder should not try to install or repair a welding machine. has distinct properties and corresponding advantages and limitations.

4.0     Material and Tools

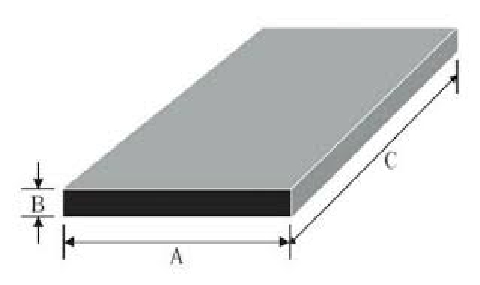

4.1          Mild steel flat bar (6 x 40 x 100 mm)

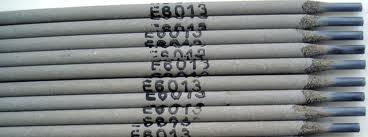

4.2          Electrode

• Electrode that use is E4113/ E6013
• The "E" stands for arc welding electrode. Next will be either a 4 or 5 digit number stamped on the electrode. The first two numbers of a 4 digit number and the first 3 digits of a 5 digit number indicate the minimum tensile strength (in thousands of pounds per square inch) of the weld that the rod will produce, stress relieved. E6013 electrode can be used with AC and DC currents. It produces a medium penetrating weld with a superior weld bead appearance.

4.3 DC Arc Welding Machine

4.4 Face Shield

• It is made from inflammable material. In the middle of the shield there is a bright rectangular glass coated with dark colored glass. It is used to protect the user from fire-bolt and harmful rays during welding work. There are two types of shield, one is the helmet type and the other one is the hand held type.

4.5          Leather Hand Gloves

• It must be made from high quality leather. Use to protect your hand from fire-bolt and hot metal welding.

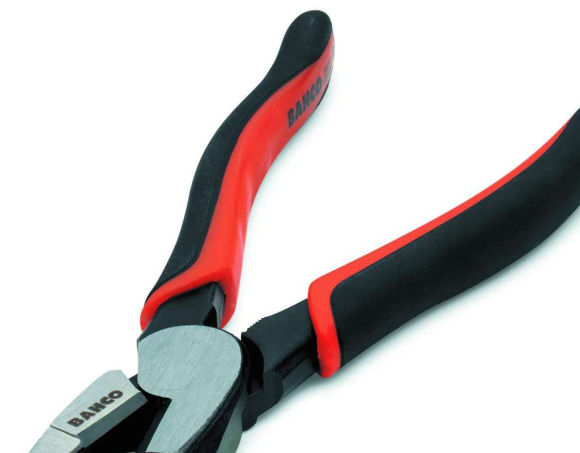

4.6          Plier

• Used for hold hot workpiece

4.7          Chipping Hammer

• It is made from an old punch, chisel or spring metal.
• Shape like a chisel at one end and has a sharpened end at the other one.
• Its holder is made from welded soft metal.
• It is used commonly to remove the slag excess stringer from the surface of the work metal.

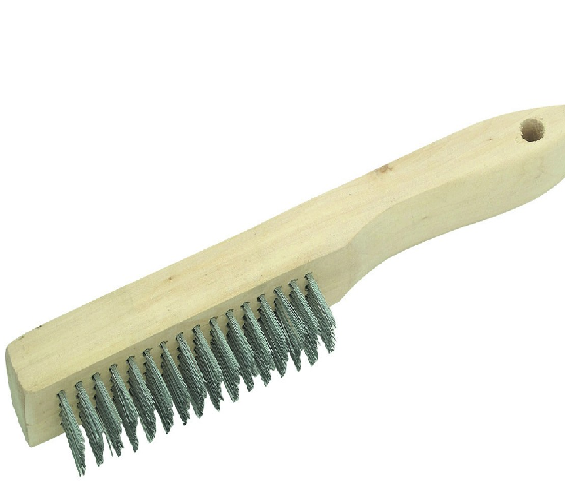

4.8          Wire Brush

• Used to clean the surface of the stringer bed after the slag is chipped away and to remove dirt from the surface of metal work before welding can be done.

4.9          Leather Jacket

• Leather jacket is used to protect the user from the intense heat produced during welding operations.
• It is made of high quality leather to provide greater comfort for the user.

4.10        Angular Mild Steel Bar

• Used for hold two pieces of metal during corner joint weld.

5.0     TYPES OF WELDING JOINT

5.1        Patent-Pending Process

• Working Procedure

1. Clean the surface of metal plate with wire brush.
2. Place the metal plate on the working table.
3. Before welding, adjust the electric current to DC current and scratch the electrode on the scrap metal.
4. Hold the electrode about 90^o above the scrap metal. Tilt the electrode 30^o to the left or right depending on which hand do you use from the work metal.
5. Scratch the front end of the electrode onto the work metal to start the burning. After the electrode has started burning, hold it at 3mm above the work metal. Try to avoid the electrode from being in contact with the surface of work because the electrode might be stick onto the workpiece.

1. Repeat the welding process for several times until you get a straight stringer bead line when welding.
2. Repeat the process of (f) for second straight stringer bead line.

1. When finish the welding process, use the chipping hammer to chipped off the slag and brush it off using a wire brush

5.2        Close Butt Joints

• Working Procedure

1. Clean the surface of two (2) metal plates with wire brush.
2. Place both metal plates on the working table.
3. Before welding, adjust the electric current to DC current and scratch the electrode on the scrap metal.
4. Hold the electrode about 90^o above the scrap metal. Tilt the electrode 30^o to the left or right depending on which hand do you use from the work metal.
5. Make tack weld on both side to prevent the metal plates from bending during the welding process occur.

1. Scratch the front end of the electrode onto the work metal to start the burning. After the electrode has started burning, hold it at 3mm above the work metal. Try to avoid the electrode from being in contact with the surface of work because the electrode might be stick onto the workpiece.

1. When finish the welding process, use the chipping hammer to chipped off the slag and brush it off using a wire brush

5.3        Corner Joints

• Working Procedure

1. Clean the surface of two (2) metal plates with wire brush.
2. Place the angular of mild steel on the working table to support two (2) metal plates.
3. Before welding, adjust the electric current to DC current and scratch the electrode on the scrap metal.
4. Hold the electrode about 90^o above the scrap metal. Tilt the electrode 30^o to the left or right depending on which hand do you use from the work metal.
5. Make tack weld on both inside the metal plates to prevent the metal plates from not parallel during the welding process occur.
6. Scratch the front end of the electrode onto the work metal to start the burning. After the electrode has started burning, hold it at 3mm above the work metal. Try to avoid the electrode from being in contact with the surface of work because the electrode might be stick onto the workpiece

1. When finish the welding process, use the chipping hammer to chipped off the slag and brush it off using a wire brush

6.0     SUGGESTIONS FOR IMPROVEMENT

• Changes all leather gloves which not in good condition.
• Use a suitable exhaust fan during welding

• Change the cable that connected to the earth holder and electrode holder which not in good condition
• Make sure the mirror of the face shield clearly.

7.0     CONCLUSION

In conclusion, we can conclude that there are some problems that happened in arc welding process.

The first problem that happened in arc welding process is the thicknesses of arc line on metal plate. We can overcome it such as we can improve our skill with we can reduce the movement of speed when doing arc welding.

Second problem is combination of the metal plate is not too strong. It may cause the work be crack or don’t have enough quality. To overcome this problem is we need to add more electrodes at the work.

Third problem is the work of arc welding not good enough. It may cause from the wrong angle and wrong position on plate when doing welding. This problem can solve if we use 30º in angle and at least 3mm between electrode and plate when welding.

            After we make some work of welding, we can know the main factor why the work in our welding is not too good. The main factor is lack of skill from student. So that we need to improve ourselves by do the weld properly and use the right method in welding.
