Derive the formula for the magnetic field of a solenoid using Ampere’s law. Be sure to...

Derive the formula for the magnetic field of a solenoid using Ampere’s

law. Be sure to draw a diagram showing the solenoid, magnetic field and Amperean loop.

Explain how you use the loop to compute the enclosed current and circulation of the B field.

(On which sides is the dot product of B and dl zero, and why?)

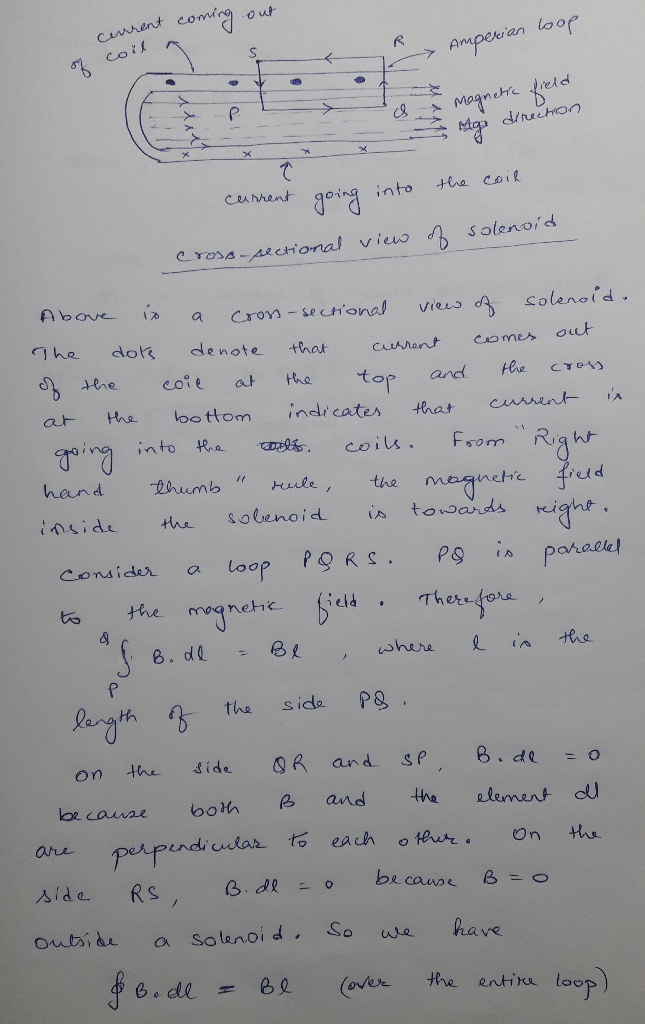

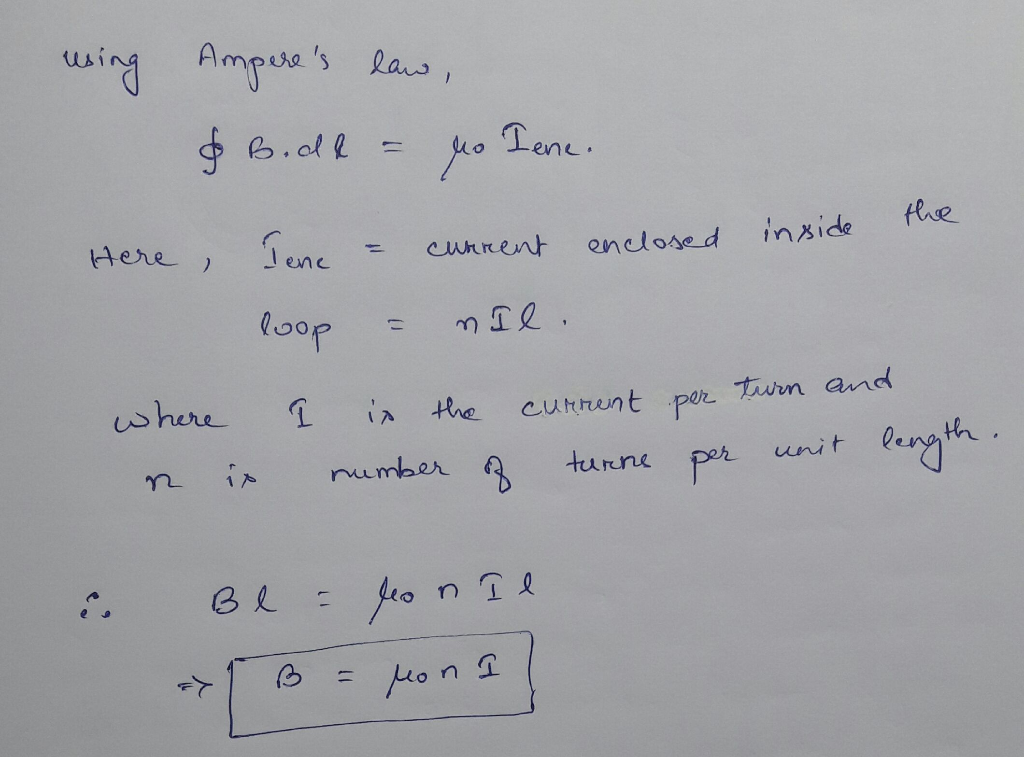

Expert Solution

genius_generous answered 2 hours ago
