Detail design a gear reducer that would meet (at a minimum) the following design specification: Power...

Detail design a gear reducer that would meet (at a minimum) the following design specification:

  • Power to be delivered: 40 hp
  • Input speed: 1750 rpm
  • Output speed: 40–44 rev/min
  • Usually low shock levels, occasional moderate shock
  • Input and output shafts extend 4 in outside gearbox
  • Maximum gearbox size: 18-in x 18-in base, 36-in height
  • Output shaft and input shaft in-line
  • Connection to a roller and conveyor via a chain drive

Other than the reducer design, design the intermediate and main shafts, including complete specification of the gears, bearings, keys, retaining rings, and shaft.

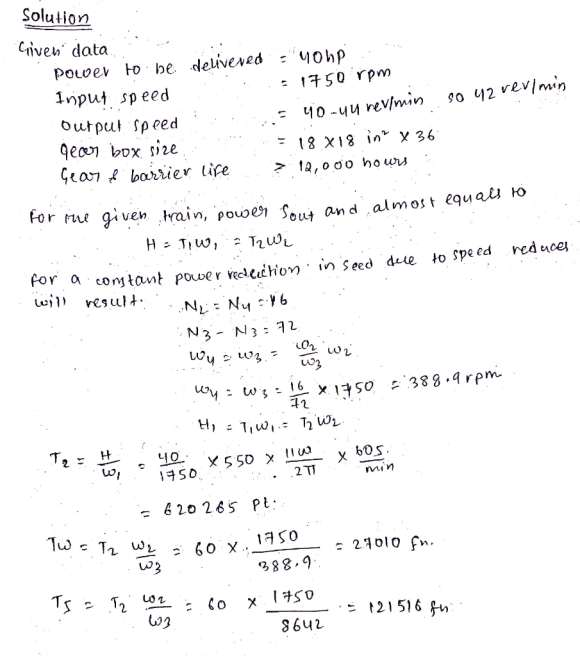

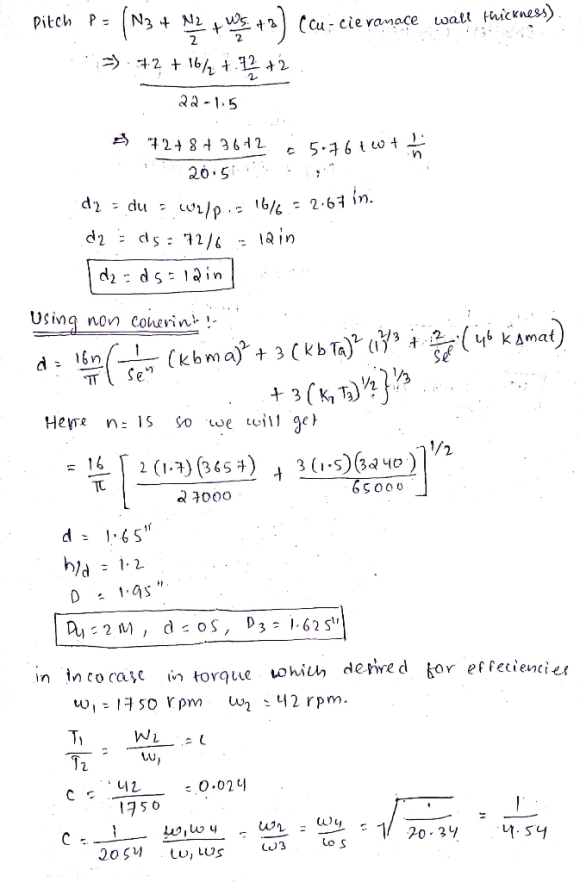

Solutions

Expert Solution

P.S: If you are having any doubt, please comment here, I will surely reply you.Please provide your valuable feedback by a thumbsup. Your thumbsup is a result of our efforts. Thanks in advance!

samet mamat answered 1 month ago
