Question

The Programming Language is C++

Objective:

The purpose of this project is to expose you to:

One-dimensional parallel arrays, input/output, Manipulating summation, maintenance of array elements. In addition, defining an array type and passing arrays and array elements to functions.

Problem Specification:

Using the structured chart below, write a program to keep records and print statistical analysis for a class of students. There are three quizzes for each student during the term. Each student is identified by a four-digit student ID number. The number of students in the class is unknown, therefore we need to detect end of file to stop. The file pr2data.txt is included and contains the data.

The program calculates the statistics for each student and for each quiz as shown in the sample output. The output goes to a file and is in the same order as the input and should be similar to the following: any other improvements to the output are welcomed.

                  CIS Department – Fall 2018

                     CIS 161 Class Statistics

Student                        Quiz 1               Quiz 2              Quiz 3          Average

1234                          78                 83              87                   82.67

2134                          67                77              84                  76.00

3124                          77                89              93                  86.33

High score                 78                89              93

Low score                 67                77              84

Quiz Average            73.4              83.0           88.2

pr2data

1234   52   70   75
2134   90   76   90
3124   90   95   98
4532   21   17   81
5678   20   22   45
6134   34   45   55
7874   60   99   56
8026   70   10   66
9893   34   09   77
2233   78   20   78
1947   45   40   88
3456   78   55   78
2877   55   50   95
3189   70   98   78
2132   77   97   80
4602   89   50   91
3445   78   60   78
5405   35   33   15
4556   78   20   18
6999   88   98   89
9898   48   78   68
2323   78   20   78

Requirements:

• Main () is used as a driver function; the only statements in main are function calls.
• Your program needs to follow my hierarchical chart.
• Define a new type for each array of a type.
• Declare an array for each of the data items.
• Setdata() reads the data from the file into arrays.
• Getdata prints the results into a file.
• Findstavg calculates each student’s average and stores it into an array.
• Findqzavg finds the average of a quiz and returns the average as its value
• Findhigh finds the largest quiz in an array and returns it as its value.
• Findlow finds the smallest quiz in an array and returns it as its value.

Grading Criteria:

5 points      There are sufficient comments in the programs.

5 points      use the typedef to define all arrays.

5 points      a flowchart of the function main () is included and is correct (only main()).

5 points      use a counter to count the number of elements read.

5 points      generate an error if file does not exist, or if not open.

10 points      loop is included and reads the data until it encounters the end of file.

5 points      proper passing by value/by reference for all functions.

5 points      the function findstavg () finds the float average for each student.

5 points      the function findhigh () is clear correct and returns the highest quiz.

5 points      the function findlow () is clear correct and returns the lowest quiz.

10 points      the function findqzavg () is clear correct and returns a quiz average.

5 points      every function has specifications.

5 points      headings, column titles are printed, formatted and looks nice.

5 points      data/calculated results are printed with proper spacing and proper formatting.

15 points      the program runs correctly and produces the intended results.

5 points       output are printed to a file.

Answer 1

Please let me know if anything is required.

Code:

#include <iostream>
#include <fstream>
#include <sstream>
#include <string>
using namespace std;

//function ti calculate hte student Average
float findstavg(int q1,int q2,int q3)
{
return (q1+q2+q3)/3.0;
}

//function to find the high score
int findhigh(int q[],int n)
{
int max =q[0];
for(int i=1;i<n;i++)
{
if(q[i]>max) //condition for max
{
max=q[i];
}
}

return max;
}

//function to find the low score
int findlow(int q[],int n)
{
int min =q[0];
for(int i=1;i<n;i++)
{
if(q[i]<min)//condition for min
{
min=q[i];
}
}

return min;
}

//function to find the quiz average
float findqzavg(int q[],int n)
{
int s=0;
for(int i=0;i<n;i++)
{
s+=q[i]; //calculating the sum
}

double avg = s/(n*3.0); //calculating the avg
return avg;
}

int main()
{

string line;
ifstream myfile("pr2data.txt"); //opening the input file
ifstream myfile1("pr2data.txt");

//program to find the number of lines are present in the file for declaring the array sozes
int linecount=0;

//condition to check whether able to open the file or not
if (myfile.is_open())
{
while ( getline (myfile,line) )
{
linecount++;

}

myfile.close();
}

else {cout << "Error, the file does not exist\n"; }

//code to perform the required actions
if (myfile1.is_open())
{

ofstream outfile;
outfile.open("output.txt"); //output file to write the contents
outfile<<"Student Quiz1 Quiz2 Quiz3 Average\n";

//arrays to store the values
int student[22];
int quiz1[22];
int quiz2[22];
int quiz3[22];

int j=0;
while ( getline (myfile1,line) )
{
outfile<<line;//writintg the contents to the output file
int s[4];
string delimiter = " "; //splitting the line with spaces

int i=0;
size_t pos = 0;
string token;
while ((pos = line.find(delimiter)) != string::npos)
{
token = line.substr(0, pos);

stringstream geek(token); //converting the string to int
int x = 0;
geek >> x;
s[i]=x;
i++;
line.erase(0, pos + delimiter.length());
}

//converting the string to int
token = line;
stringstream geek(token);
int x = 0;
geek >> x;
s[i]=x;

//assigning the values to arrays
student[j]=s[0];
quiz1[j]=s[1];
quiz2[j]=s[2];
quiz3[j]=s[3];

//calling the student average function
float std_avg = findstavg(quiz1[j],quiz2[j],quiz3[j]);
outfile<<" "<<std_avg<<"\n"; //writintg the student average details to the output file

j++;
}


int high_score_q1 = findhigh(quiz1,22);//function to find the high score values
int high_score_q2 = findhigh(quiz2,22);//function to find the high score values
int high_score_q3 = findhigh(quiz3,22);//function to find the high score values

//writintg the high score values of each quiz to the output file
outfile<<"High score "<<high_score_q1<<" "<<high_score_q2<<" "<<high_score_q3<<" \n";

int low_score_q1 = findlow(quiz1,22); //function to find the low score values
int low_score_q2 = findlow(quiz2,22); //function to find the low score values //function to find the low score values
int low_score_q3 = findlow(quiz3,22);

//writintg the low score values of each quiz to the output file
outfile<<"Low score "<<low_score_q1<<" "<<low_score_q2<<" "<<low_score_q3<<" \n";

float avg_score_q1 = findqzavg(quiz1,22);//function to find the quiz average values
float avg_score_q2 = findqzavg(quiz2,22);//function to find the quiz average values
float avg_score_q3 = findqzavg(quiz3,22);//function to find the quiz average values

//writintg the average quiz values of each quiz to the output file
outfile<<"Quiz Average "<<avg_score_q1<<" "<<avg_score_q2<<" "<<avg_score_q3<<" \n";

myfile.close();
}


return 0;
}

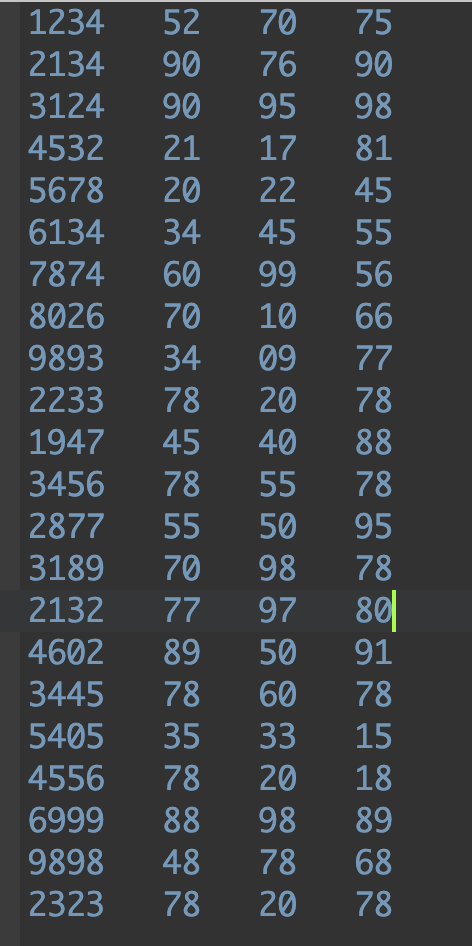

Inputfile screenshot :

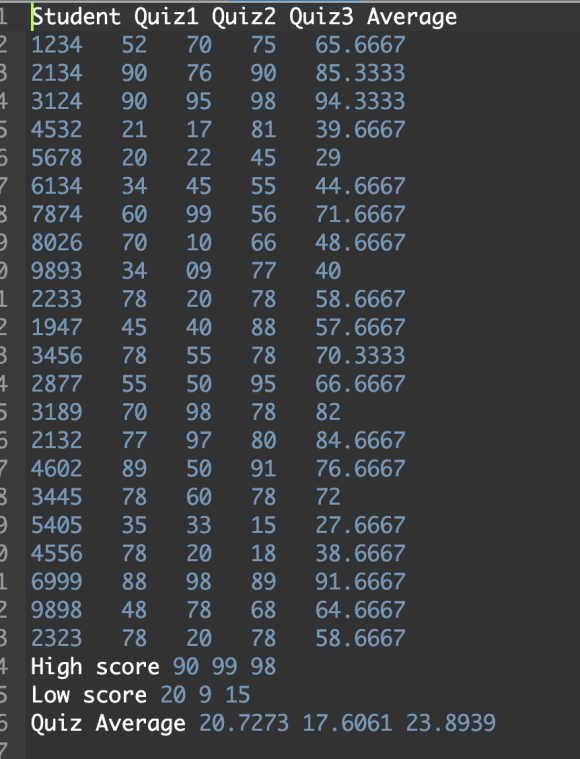

output screenshot :

Testcase1 :

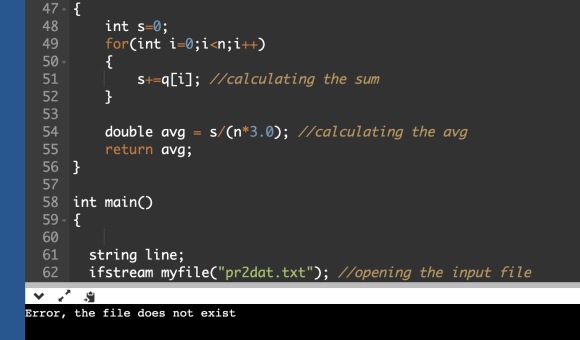

Testcase 2:

I gave the file name as pr2dat.txt instead of pr2data.txt so we should get an error as the input file is not exist, attaching the screenshot for the same.
