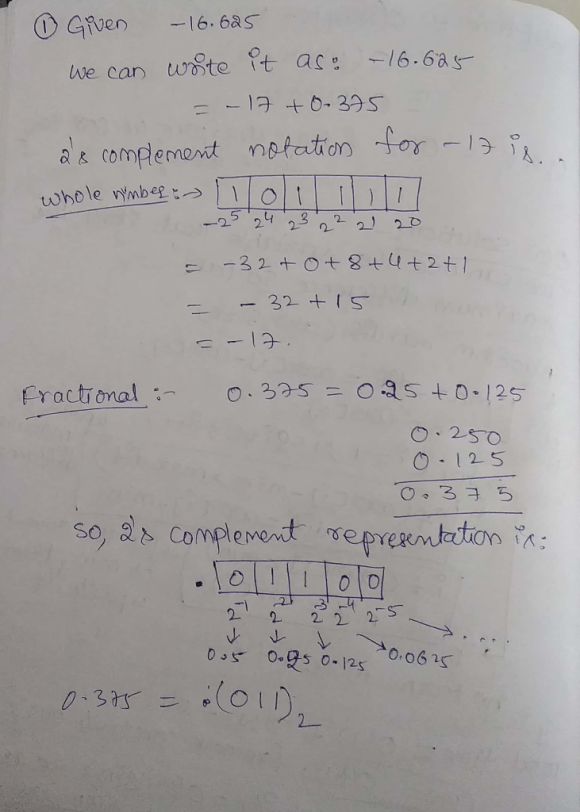

1) Convert negative fractional decimal number to 8-bit binary number: – 16.625 (use 2's complement binary format)

Hint: –17 + 0.375

Given the hint above, the fractional number will be divided into two parts,
- Whole number,
- Fractional part, must be positive

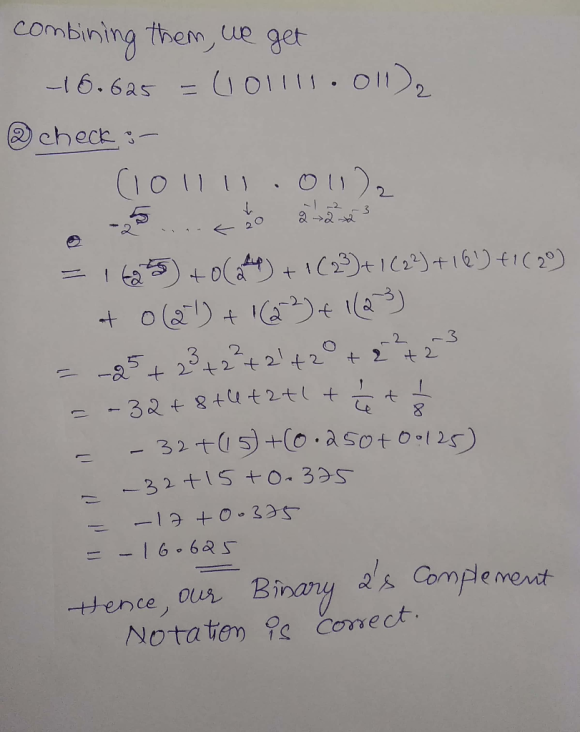

(2) Proof to check that your calculation above is correct

Expert Solution

Please find the STEP-BY-STEP clear solution here.

venereology answered 7 months ago
