Question

In: Electrical Engineering

Write a note on Chebyshev multi section matching transformer designs. (b) Design a four-section Chebyshev matching...

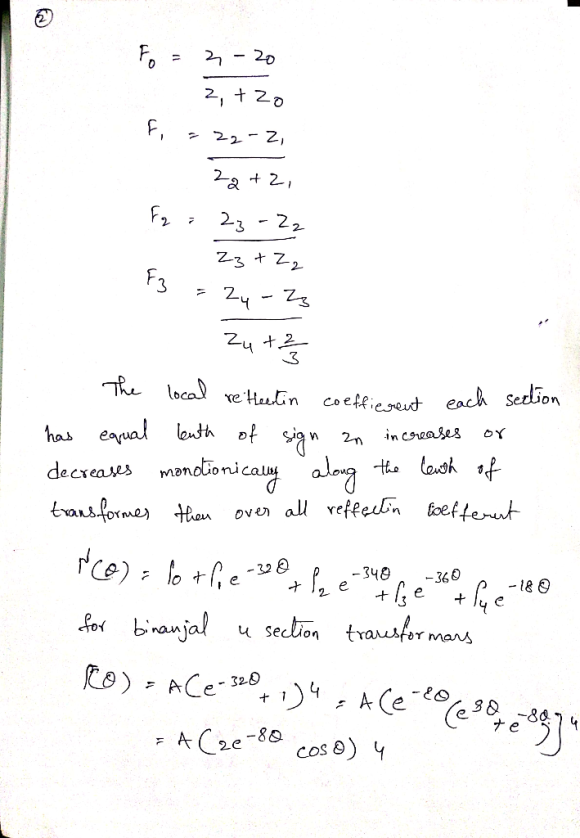

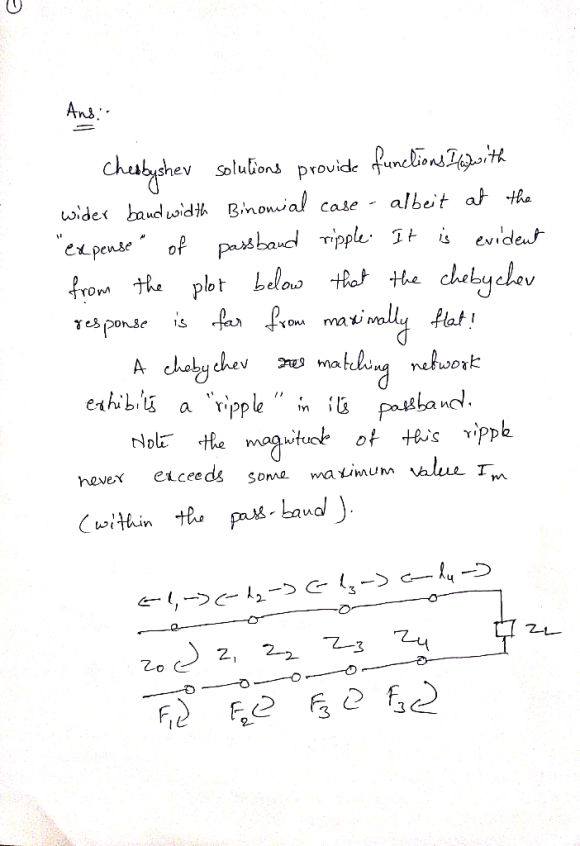

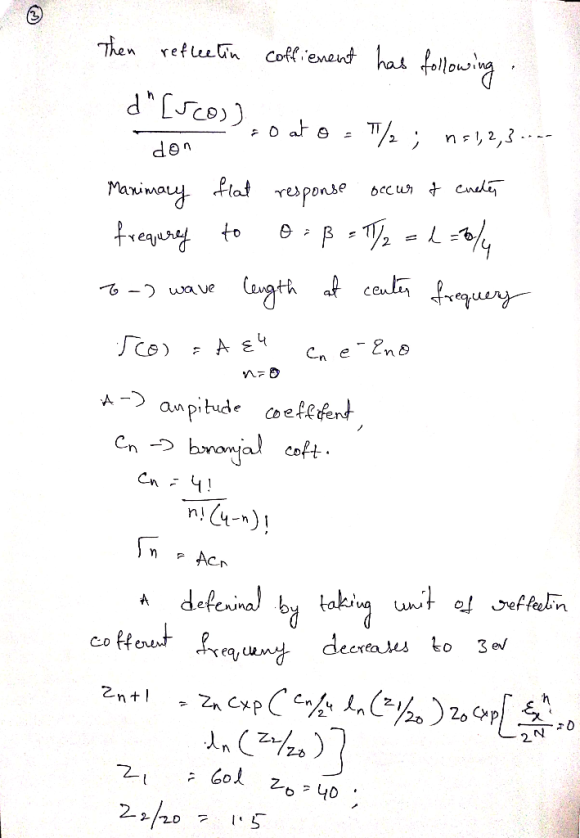

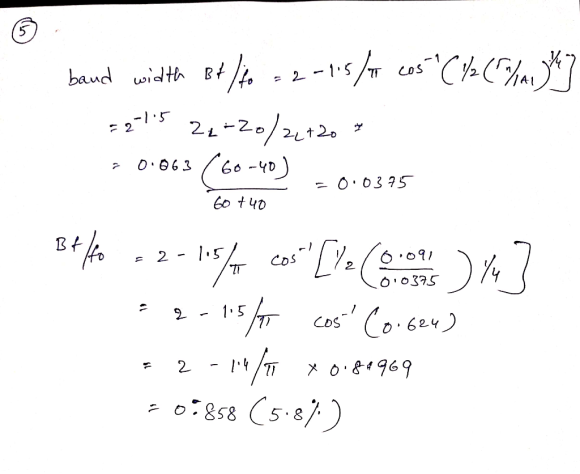

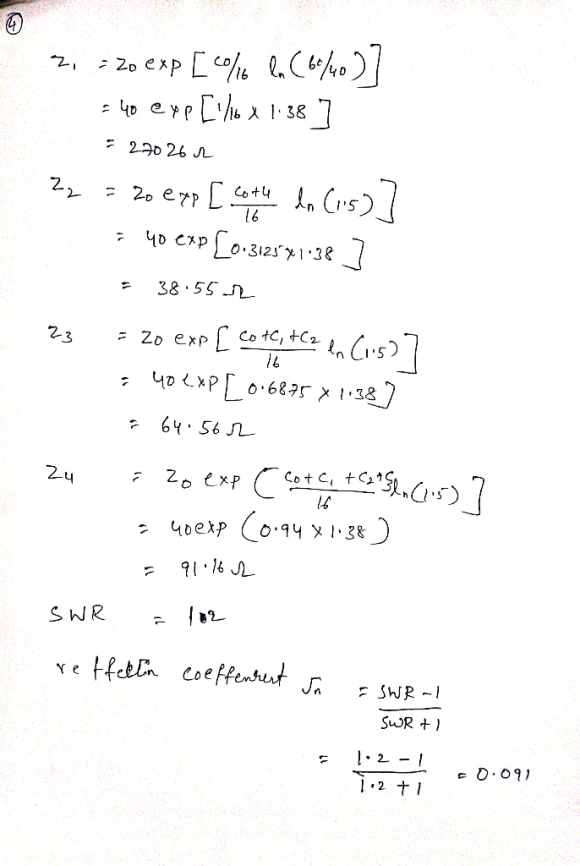

Write a note on Chebyshev multi section matching transformer designs. (b) Design a four-section Chebyshev matching transformer to match a 40ohm line to a 60 ohm load. The maximum permissible SWR over the pass band is 1.2. What is the resulting bandwidth?

Solutions
